Audio-Technica DJ Cartridge (AT-XP3)

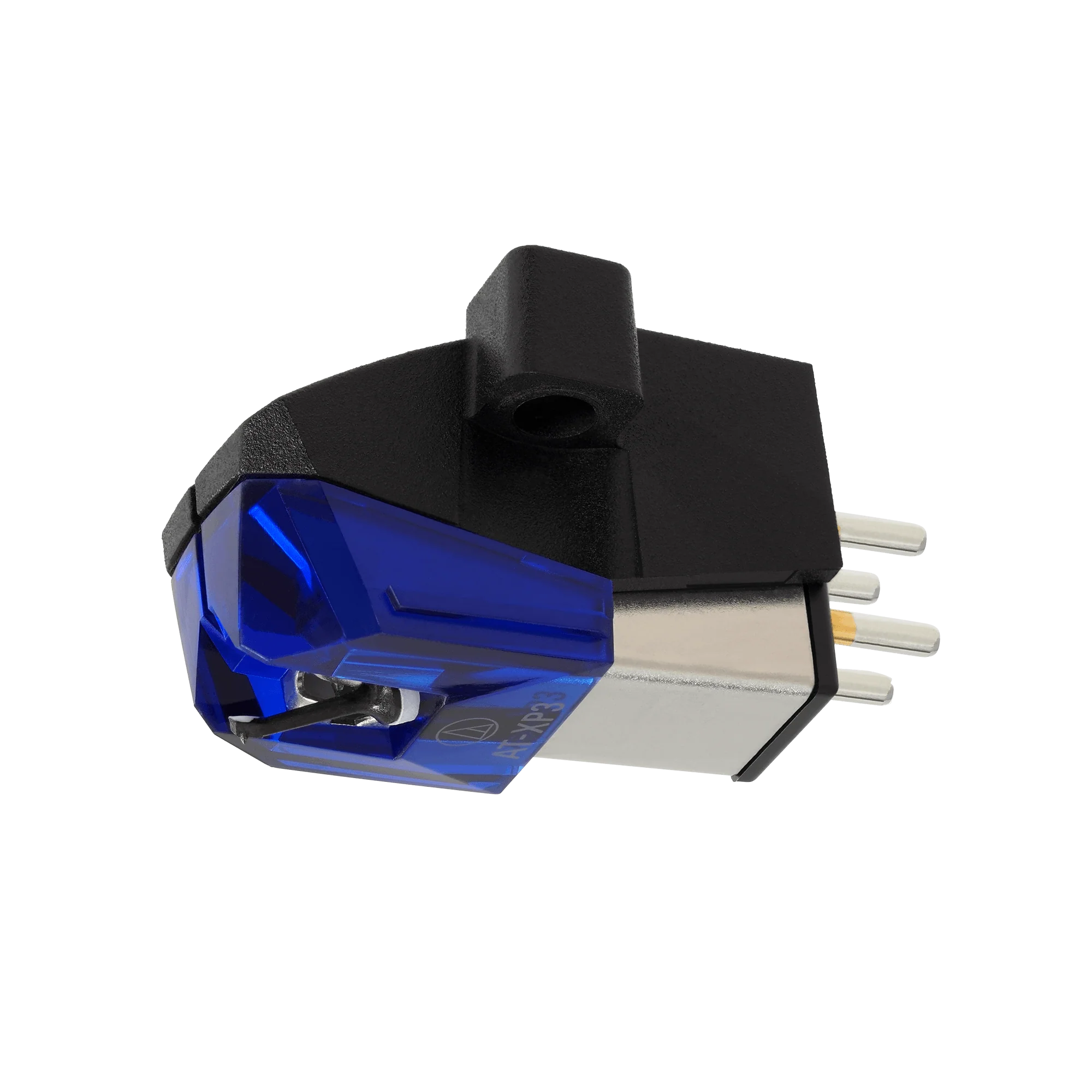

Product image 1
1 / 3

Audio-Technica DJ Cartridge (AT-XP3)

AT-XP3

The AT-XP3 cartridge is specially designed for DJs. It features a highly-rigid polyphenylene sulfide (PPS)/glass fiber body, has a tracking force of 2 to 4 grams, and offers a powerful output level of 5.5 mV. Its 0.6 mil conical bonded stylus tracks the center of the record groove for reliable performance and excellent fidelity. And the cartridge design provides maximum visibility of the stylus tip. The AT-XP3 cartridge is compatible with any XP or VM95 Series replacement stylus, offering a wide choice of options for every budget and application.



    • 0.6 mil conical bonded stylus tip
    • Highly-rigid polyphenylene sulfide (PPS)/glass fiber body
    • 5.5 mV high-level output
    • Tracking force of 2.0 to 4.0 grams (3.0 grams standard)
    • Durable carbon fiber-reinforced ABS cantilever and nylon wire suspension ensure precise tracking
    • Design offers maximum visibility of the stylus tip
    • Great tracking and channel separation for high-fidelity sound
    • AT-XP3 cartridge is compatible with any XP or VM95 Series replacement stylus, offering a wide choice of options for every budget and application



    Cartridge & Stylus
    Frequency Response 20-18,000 Hz
    Channel Separation 20 (dB at 1 kHz)
    Vertical Tracking Angle 20°
    Vertical Tracking Force 2.0-4.0 g (3.0 g standard)
    Stylus Construction Bonded round shank
    Recommended Load Impedance 47,000 ohms
    Coil Impedance 6.7 k ohms (1 kHz)
    Coil Inductance 550 mH (1 kHz)
    Output Voltage 5.5 mV (1 kHz, 5 cm/sec.)
    Output Channel Balance 2.0 dB (1 kHz)
    Stylus Shape 0.6 mil conical
    Cantilever Carbon fiber-reinforced ABS
    Static Compliance 20 x 10 – 6 cm / dyne
    Dynamic Compliance 6.0 x 10 – 6 cm / dyne (100 Hz)
    Mounting Half-inch
    Cartridge Weight 6.2g
    Dimensions 17.2 mm (0.68") H × 17.8 mm (0.67") W × 28.3 mm (1.20") D

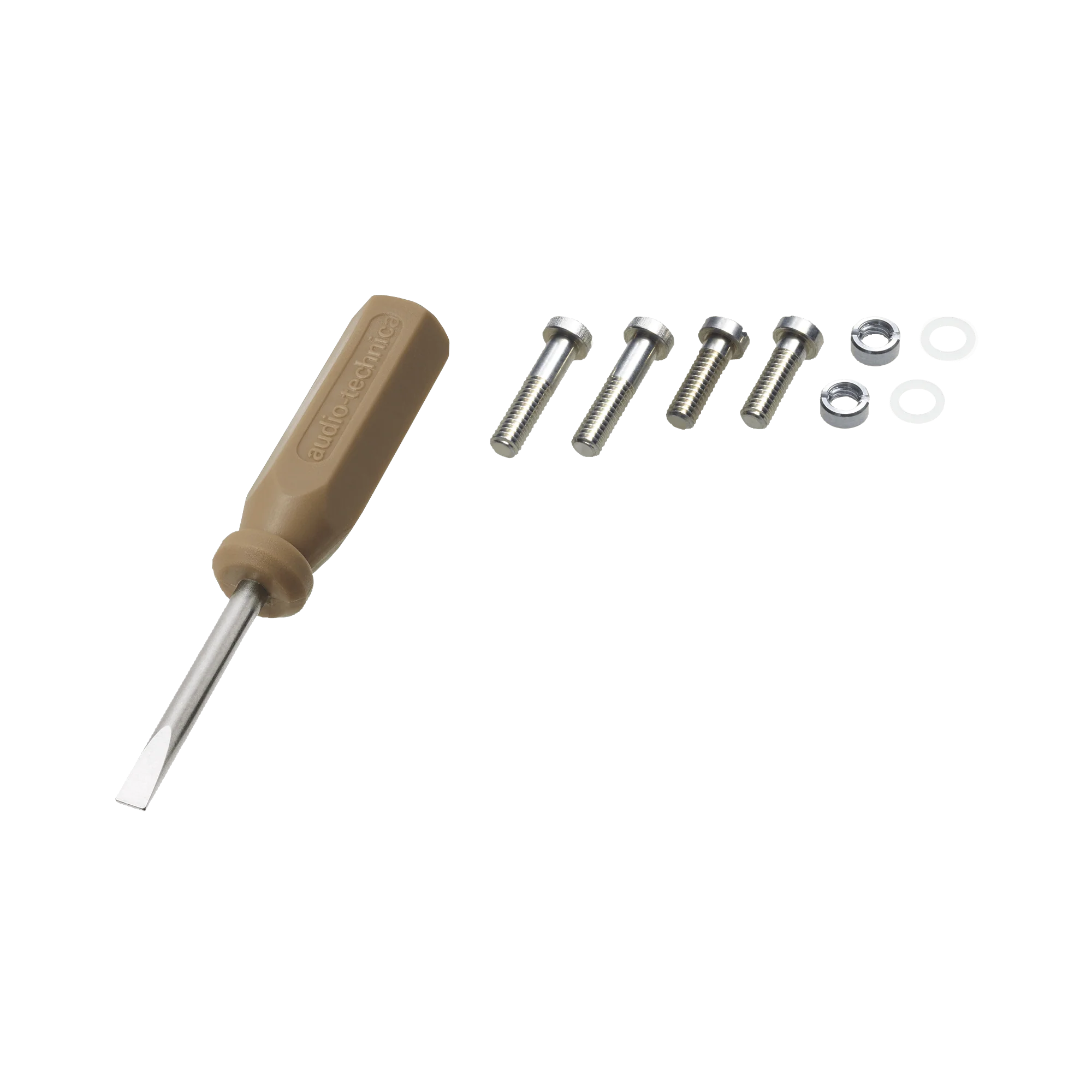

    Accessories Included Two 11 mm installation screws, two 8 mm installation screws, two washers, two nuts, non-magnetic screwdriver
    Model AT-XP3
    Mounting Feature Half-inch mount
    Recommended Load Capacitance 100 to 200 pF
    Replacement Stylus ATN-XP3
    Stylus Size 0.6 mil
    Weight

    6.2 g (0.22 oz)
