Audio-Technica DJ Cartridge (AT-XP5)

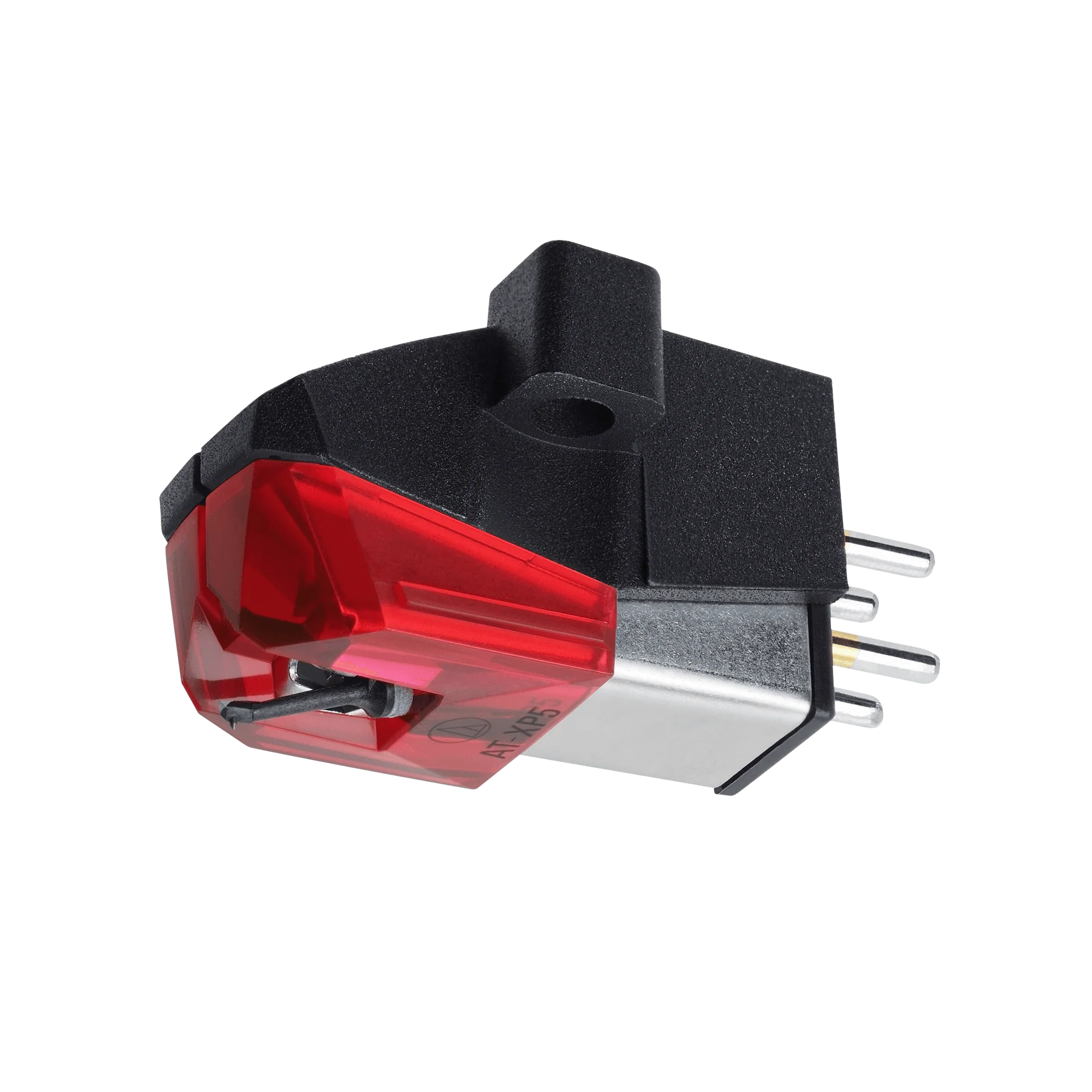

Product image 1
1 / 3

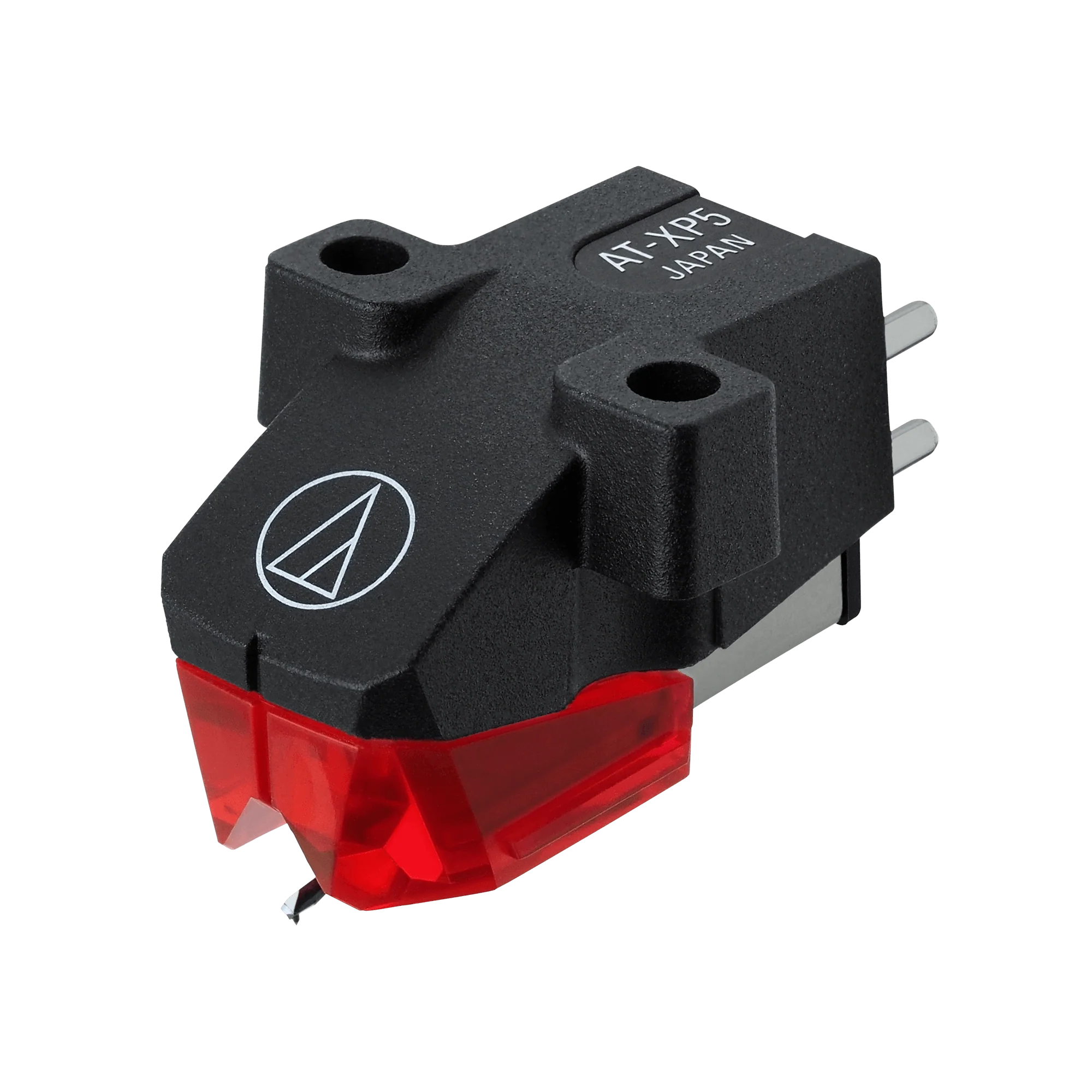

Audio-Technica DJ Cartridge (AT-XP5)

AT-XP5

The AT-XP5 is specially designed for the needs of DJs. This cartridge features a highly-rigid polyphenylene sulfide (PPS)/glass fiber body and a tracking force of 2 to 4 grams. It also offers a powerful output level of 5.5 mV, and its 0.3 x 0.7 mil elliptical bonded stylus tracks the record groove with high accuracy for outstanding audio reproduction. Plus, the cartridge is specifically designed to provide maximum visibility of the stylus tip.



    • 0.3 x 0.7 mil elliptical bonded stylus tip
    • Highly-rigid polyphenylene sulfide (PPS)/glass fiber body
    • 5.5 mV high-level output
    • Tracking force of 2.0 to 4.0 grams (3.0 grams standard)
    • Durable carbon fiber-reinforced ABS cantilever and nylon wire suspension ensure precise tracking
    • Design offers maximum visibility of the stylus tip
    • Great tracking and channel separation for high-fidelity sound



    Cartridge & Stylus
    Frequency Response 20-18,000 Hz
    Channel Separation 20 (dB at 1 kHz)
    Vertical Tracking Angle 20°
    Vertical Tracking Force 2.0-4.0 g (3.0 g standard)
    Stylus Construction Bonded round shank
    Recommended Load Impedance 47,000 ohms
    Coil Impedance 6.7 k ohms (1 kHz)
    DC Resistance 990 ohms
    Coil Inductance 1.0 H (1 kHz)
    Output Voltage 5.5 mV (1 kHz, 5 cm/sec.)
    Output Channel Balance 2.0 dB (1 kHz)
    Stylus Shape 0.3 x 0.7 mil elliptical
    Cantilever Carbon fiber-reinforced ABS
    Static Compliance 20 x 10-6 cm/dyne
    Dynamic Compliance 6.0x10-6cm/dyne (100Hz)
    Mounting Half-inch
    Dimensions 17.2 mm (0.68") H × 17.8 mm (0.67") W × 28.3 mm (1.20") D

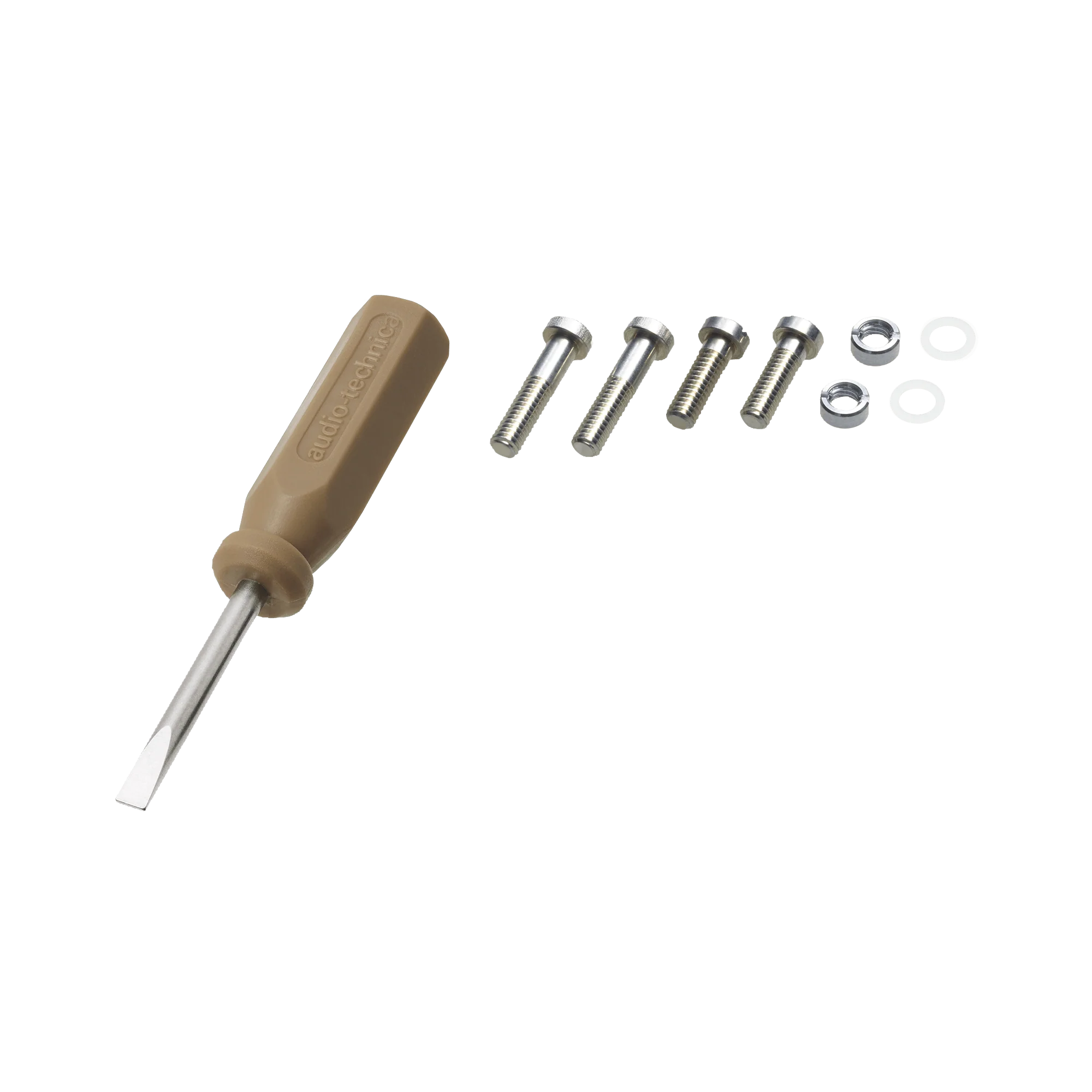

    Accessories Included Cartridge installation slotted screws 11.0 mm (0.43”) x 2 and 8.0 mm (0.31”) x 2,
    Washer x 2, Round nut x 2, Non-magnetic screwdriver x 1
    Mounting Feature Half-inch mount
    Recommended Load Capacitance 100 to 200 pF
    Replacement Stylus ATN-XP5
    Stylus Size 0.3 x 0.7 mil
    Type VM Dual Magnet
    Weight

    6.2 g (0.22 oz)
