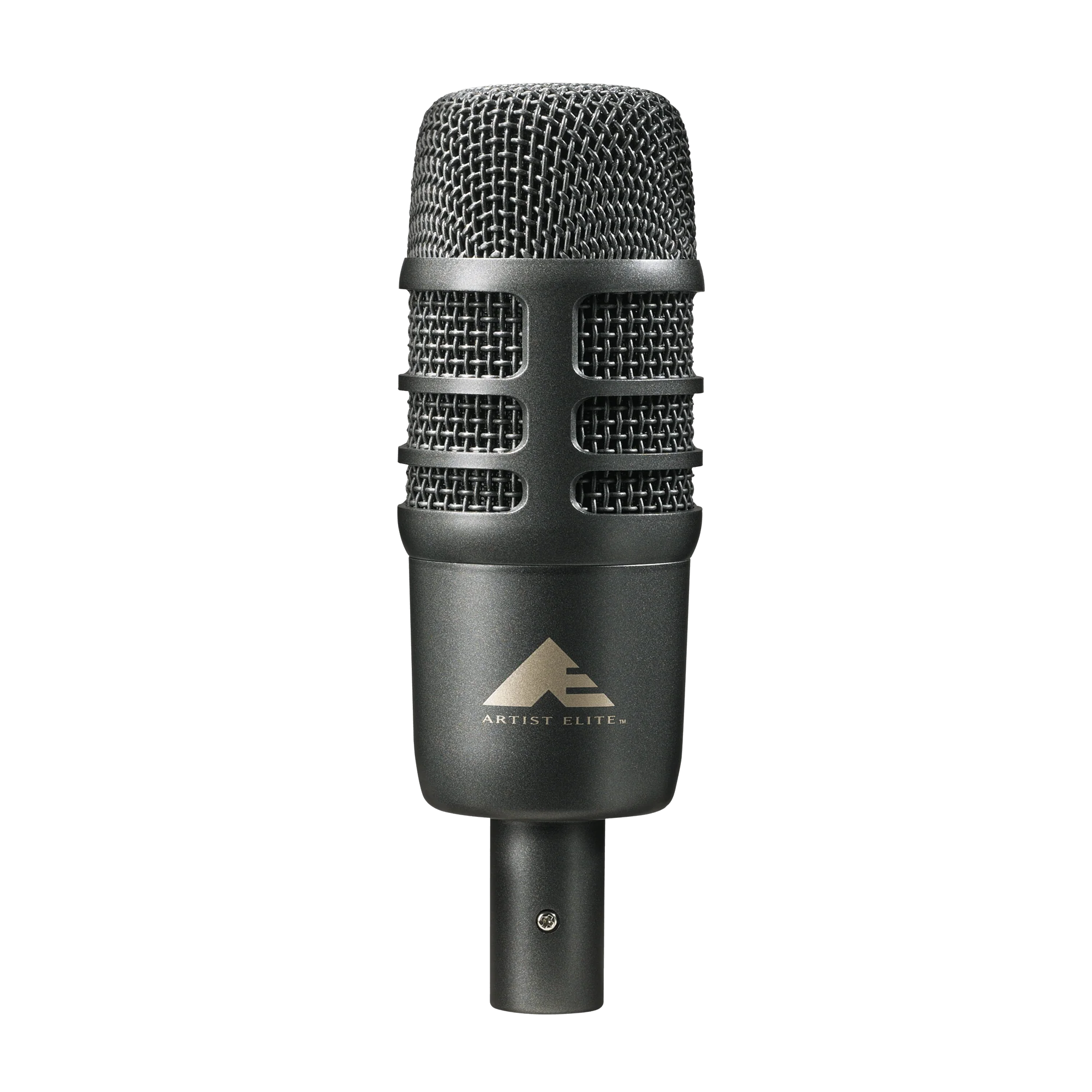

Audio-Technica Dual-element Cardioid Instrument Microphone (AE2500)
AE2500

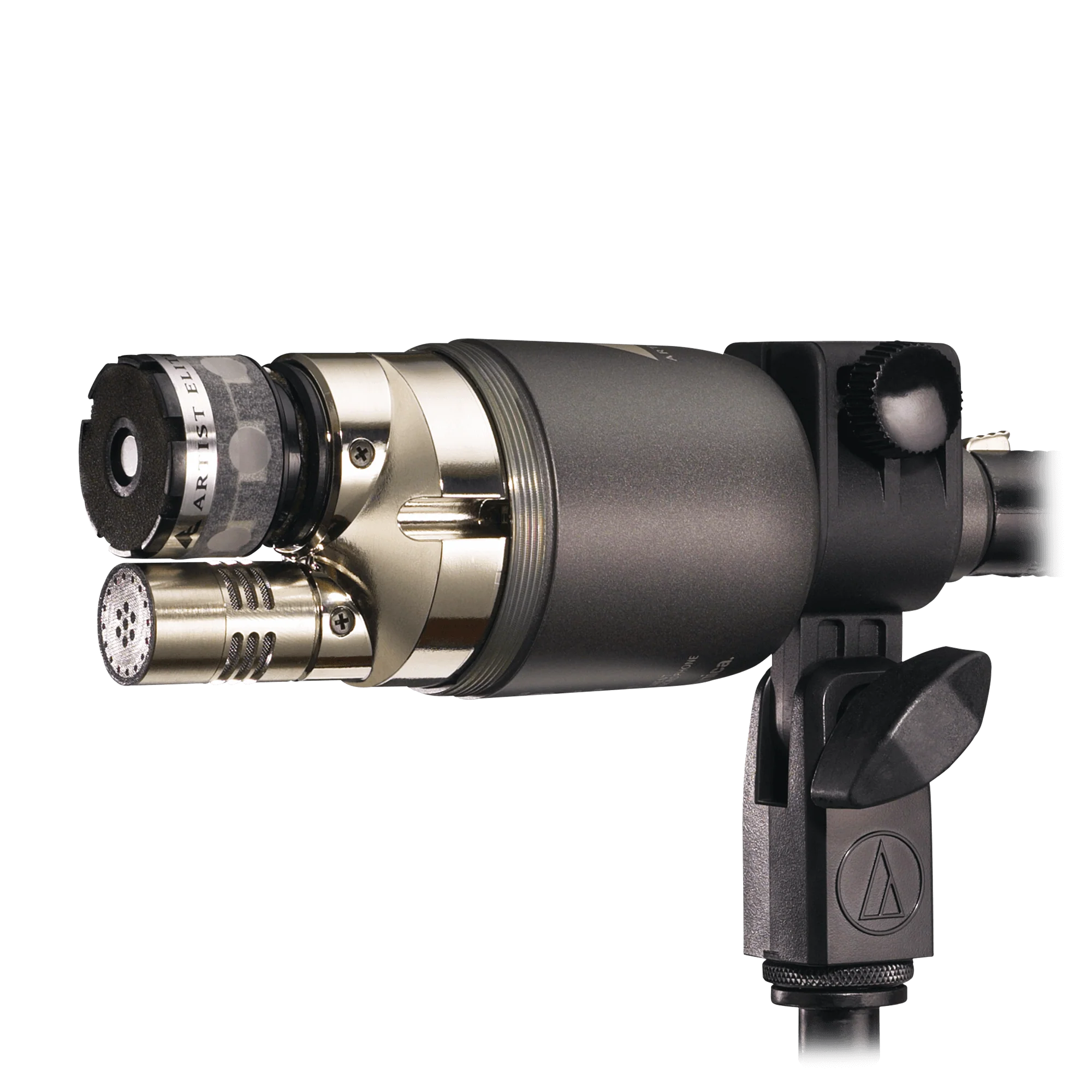

The ultimate kick-drum mic, the Artist Elite AE2500 dual-element instrument microphone features cardioid condenser and dynamic capsules combined in one housing. The dynamic element delivers the aggressive attack of the beater; the condenser captures the round tonalities of the shell. Two layers of resistive mesh form multiple densities over the dynamic element’s side-entry ports, exercising precise control over the time at which off-axis signals arrive at the diaphragm. The condenser diaphragm is optimally tensioned and aged for long-term consistency and stability.
- Revolutionary dual-element design represents a ground-breaking transducer achievement
- Two elements (condenser and dynamic) are enclosed in a single housing
- Dynamic element delivers the aggressive attack of the beater while the condenser captures the round tonalities of the shell
- Elements are positioned in a perfect phase relationship, something practically unachievable with two separate microphones
- Robust design for enduring dependability on the road
- Integral 80 Hz HPF switch and 10 dB pad on condenser element

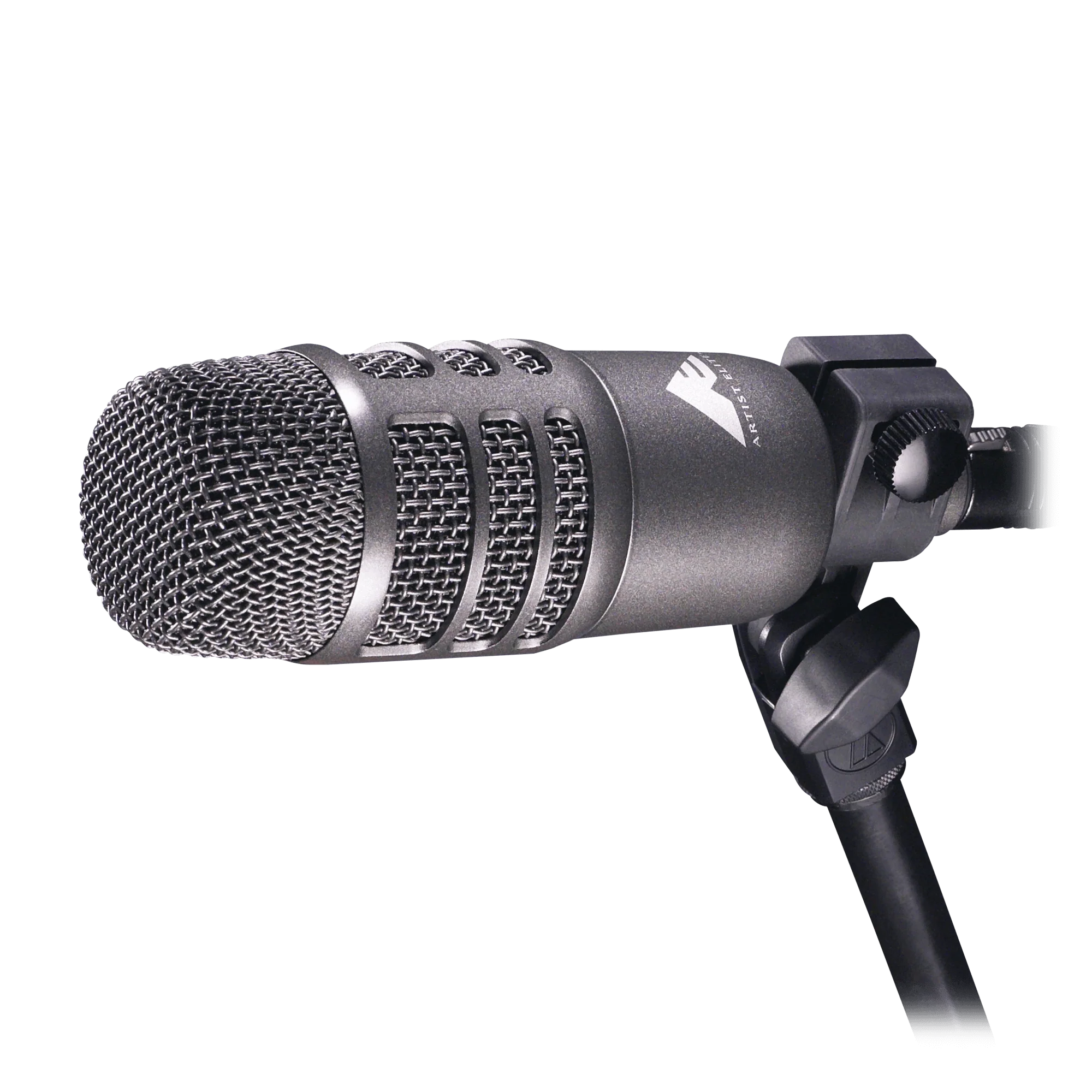

- Includes isolation clamp for shock protection, secure mounting and easy positioning
- Includes a 16.5' (5 m) cable (5-pin XLRF to two standard 3-pin XLRM connectors) for separate control over each element
| Microphones | |
|---|---|
| Element | Condenser, dynamic |
| Polar Pattern | Cardioid |
| Frequency Response | 20-17,000 Hz (condenser) 30-10,000 Hz (dynamic) |
| Low Frequency Roll Off | 80 Hz, 12 dB/octave (condenser) |
| Open Circuit Sensitivity | -51 dB (2.8 mV) re 1V at 1 Pa (condenser) -54 dB (1.9 mV) re 1V at 1 Pa (dynamic) |
| Maximum Input Sound Level | 148 dB SPL, 1 kHz at 1% T.H.D. (condenser); 158 dB SPL, with 10 dB pad (nominal) |
| Dynamic Range | 124 dB, 1 kHz at Max SPL (condenser) |
| Signal-to-Noise Ratio | 70 dB, 1 kHz at 1 Pa (condenser) |
| Phantom Power Requirements | 11-52V DC, 3 mA typical (condenser) |
| Switches | (Condenser Only) High-pass filter; 10 dB pad (nominal) |
| Weight | 13.8 oz (390 g) |

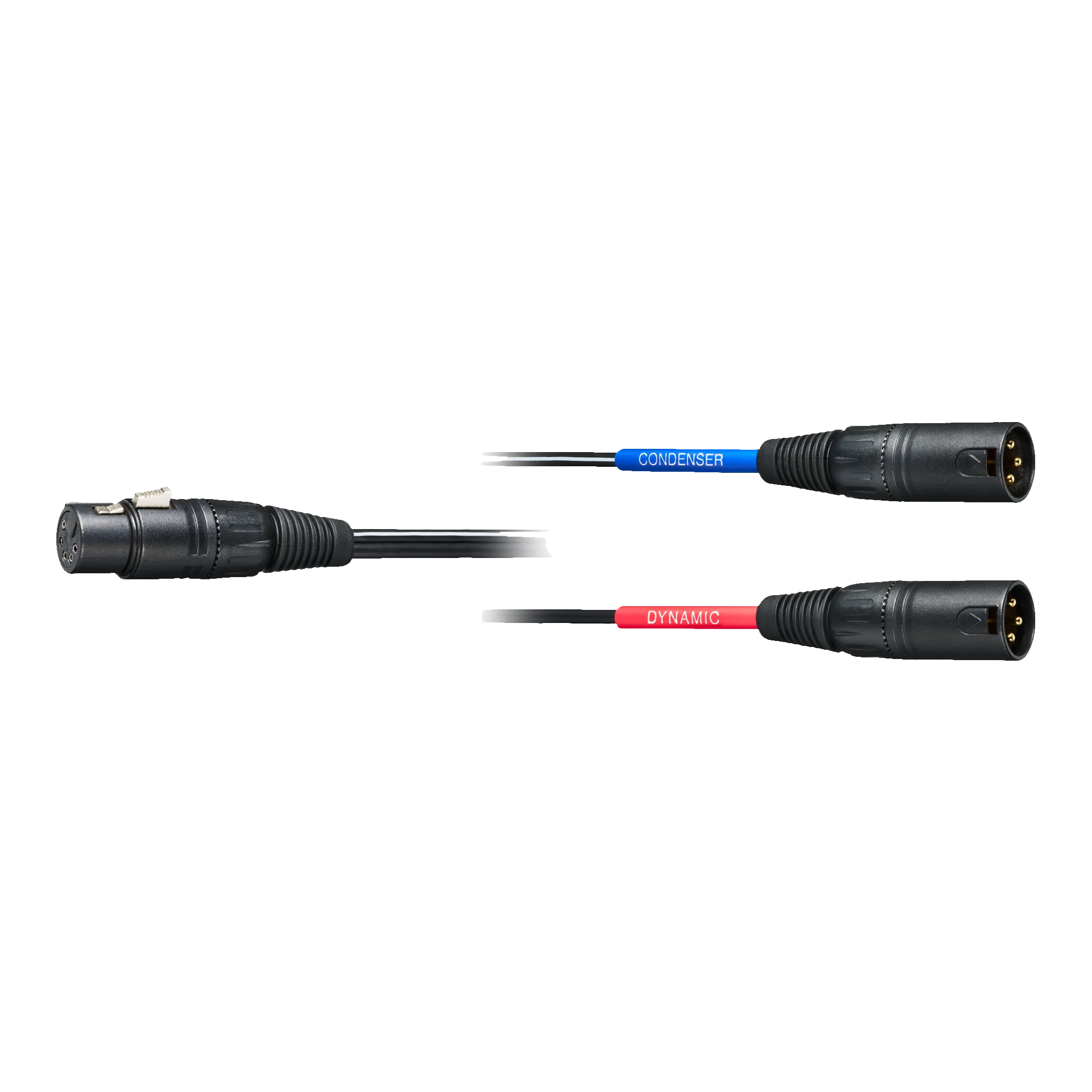

| Cable | 16.5' (5 m) dual shielded, 8-conductor cable, 5-pin XLRF-type connector at microphone, two 3-pin XLRM-type output connectors |
| Dimensions | 6.50" (165.0 mm) long, 2.17" (55.0 mm) maximum diameter |
| Output Connector | Integral 5-pin XLRM-type |

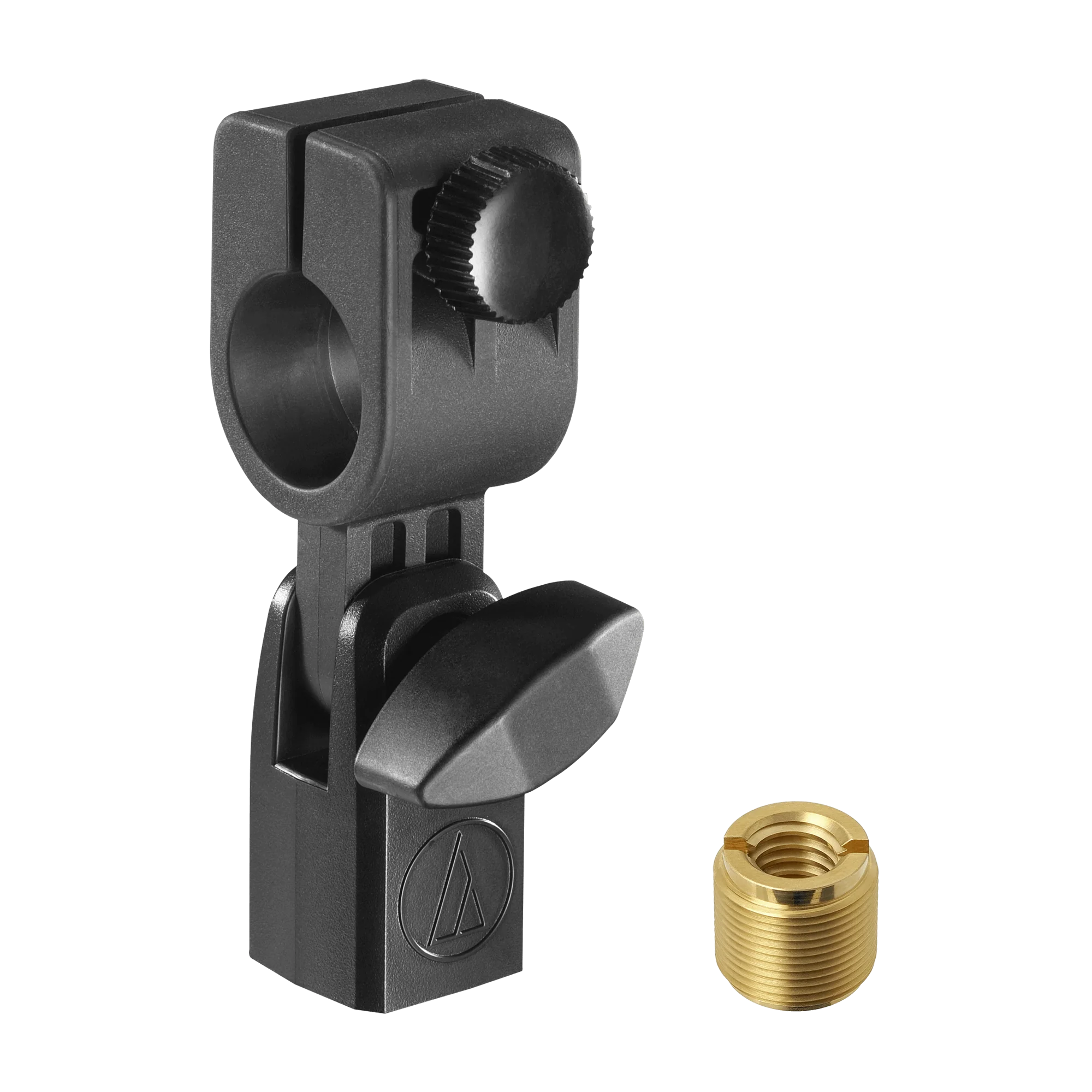

| Accessories Included | AT8471 isolation clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; soft protective pouch |
| Audio-Technica Case Style | R8 |
How Long Will Shipping Take?
For shipping and handling times, please see below:
| Item is Released | Items will ship within 1 day if in stock and as soon as available if inbound. |
| Item is a Pre-Order Sale | Items will ship once available after the release date. |
| Item is on Backorder | Orders will ship once checked in but may take 15-45 days to restock. |
