Audio-Technica Dual Moving Magnet Cartridge (VM520EB)

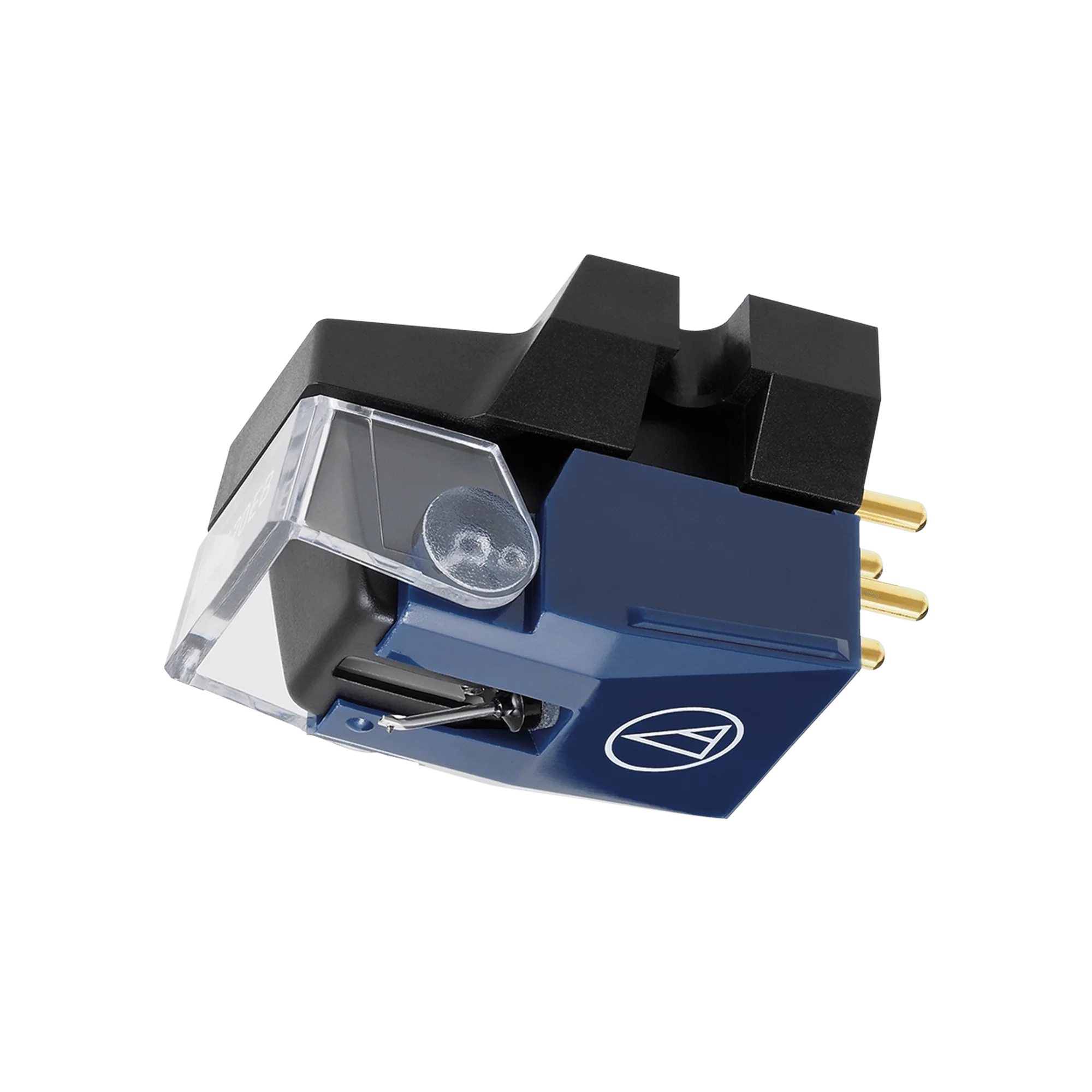

Product image 1
1 / 3

Audio-Technica Dual Moving Magnet Cartridge (VM520EB)

VM520EB

The VM520EB is part of the 500 Series in Audio-Technica’s new VM cartridge line – a line that harks back to A-T’s early days as a manufacturer primarily of high-end phono cartridges, while also incorporating today’s advanced technology. Like all VM cartridges, the VM520EB is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridge’s 0.3 x 0.7 mil elliptical bonded stylus tracks the record groove with high accuracy for outstanding audio reproduction. Includes mounting hardware.





  • VM dual magnet cartridge with 0.3 x 0.7 mil elliptical stylus
  • Aluminum cantilever

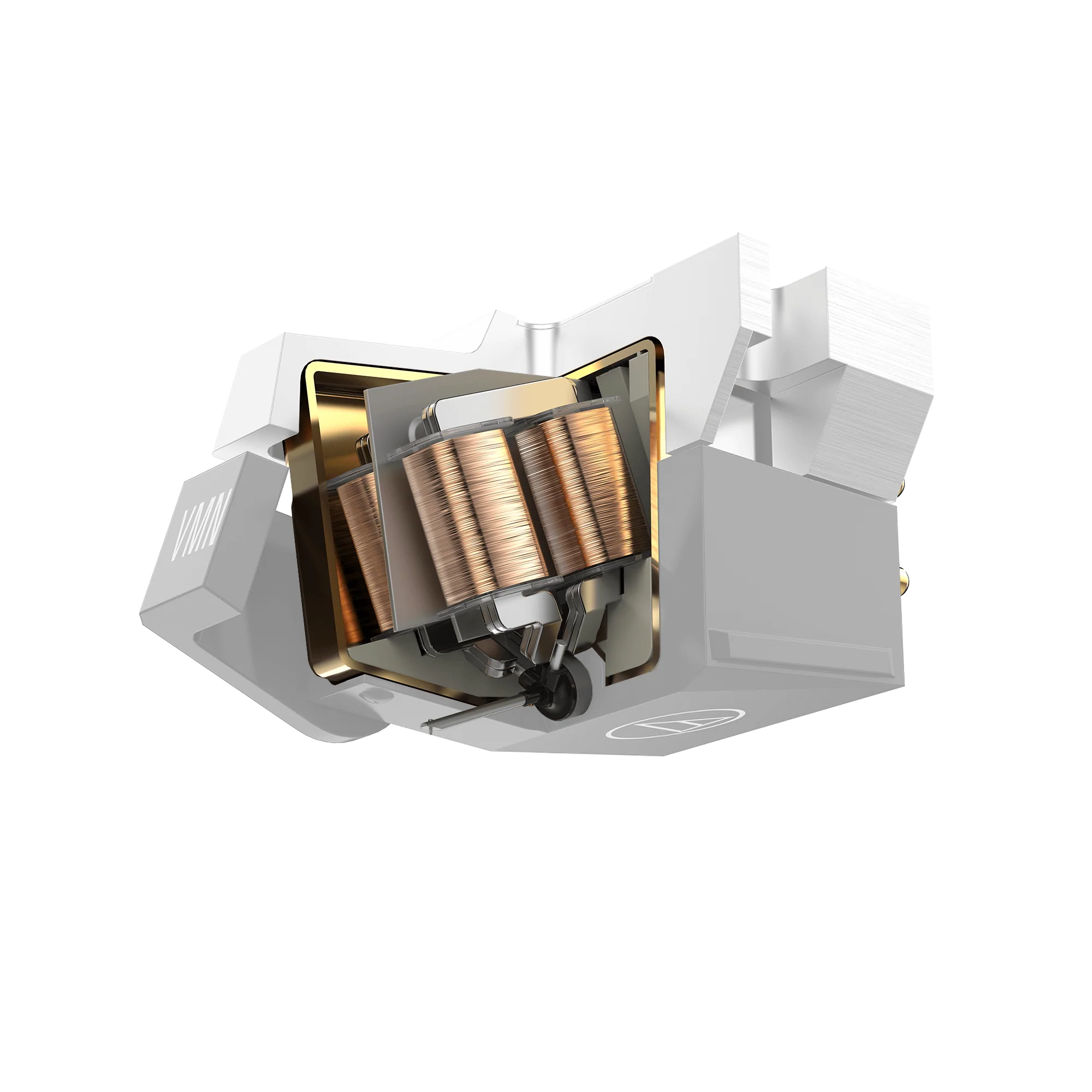

  • Paratoroidal coils improve generating efficiency
  • Center shield plate between the left and right channels reduces crosstalk
  • Durable low-resonance polymer housing



Cartridge & Stylus
Frequency Response 20-23,000 Hz
Channel Separation 27 dB (1 kHz)
Vertical Tracking Angle 23°
Vertical Tracking Force 1.8-2.2 g (2.0 g standard)
Stylus Construction Bonded round shank
Recommended Load Impedance 47,000 ohms
Coil Impedance 2,700 ohms (1 kHz)
DC Resistance 800 ohms
Coil Inductance 460 mH (1 kHz)
Output Voltage 4.5 mV (at 1 kHz, 5 cm/sec)
Output Channel Balance 1.5 dB (1 kHz)
Stylus Shape 0.3 x 0.7 mil elliptical
Cantilever Aluminum pipe
Static Compliance 35 x 10-6 cm/dyne
Dynamic Compliance 8 x 10-6 cm/dyne (100 Hz)
Mounting Half-inch
Dimensions 17.3 mm (0.7") H x 17.0 mm (0.7") W x 28.2 mm (1.1") D

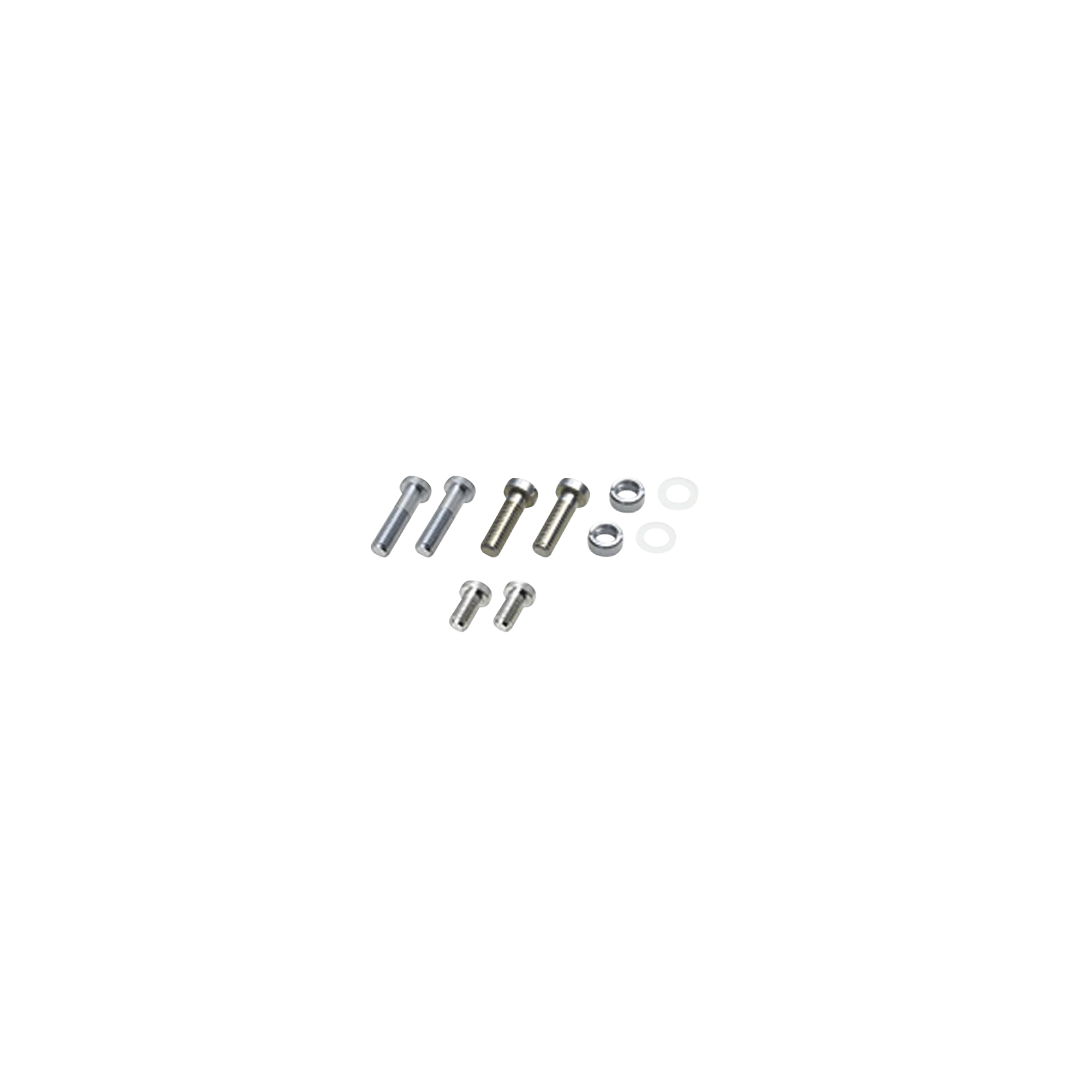

Accessories Included Six cartridge installations screws (5mm x 2, 8mm x 2 and 10mm x 2), two washers, two round nuts
Mounting Feature Half-inch mount
Recommended Load Capacitance 100-200 pF
Replacement Stylus VMN20EB
Stylus Size 0.3 x 0.7 mil
Type VM Type
Weight 6.4 g (0.2 oz)



How Long Will Shipping Take?

For shipping and handling times, please see below:



Item is Released Items will ship within 1 day if in stock and as soon as available if inbound.
Item is a Pre-Order Sale Items will ship once available after the release date.
Item is on Backorder Orders will ship once checked in but may take 15-45 days to restock.
