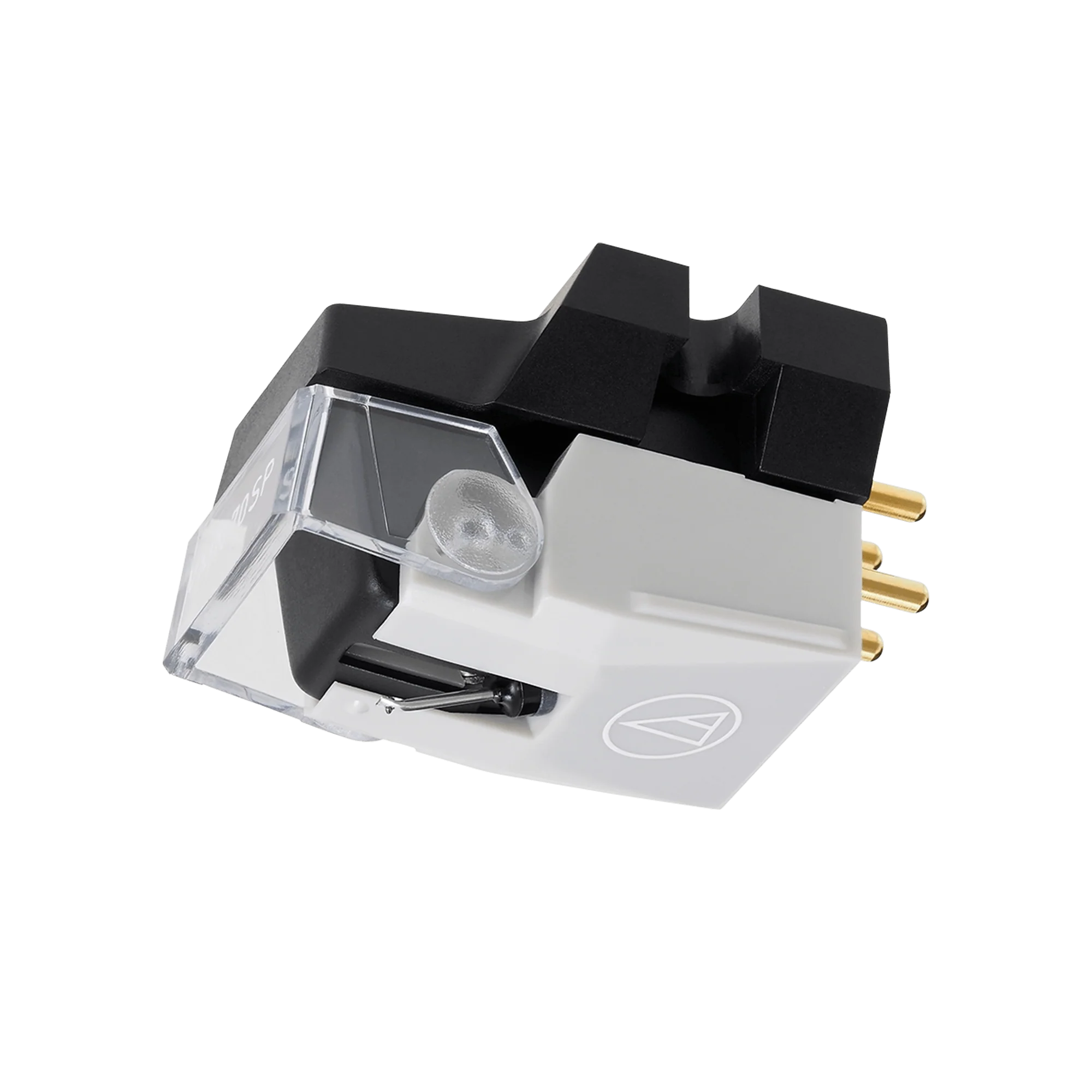

Audio-Technica Dual Moving Magnet Cartridge (VM670SP)

Product image 1
1 / 3

Audio-Technica Dual Moving Magnet Cartridge (VM670SP)

VM670SP

With a specialized body and internal wiring dedicated to monaural sound reproduction, plus a large curvature radius conical stylus, the VM670SP cartridge is designed for playing 78 RPM records. Part of the 600 Series in Audio-Technica’s new VM cartridge line – a line that harks back to A-T’s early days as a manufacturer primarily of high-end phono cartridges – the VM670SP is equipped with dual magnets that are internally connected to reduce record noise and obtain a highly focused “center” sound image that stereo cartridges can’t provide. The stylus’s 3.0 mil curvature radius makes it an excellent choice for playing 78s from a wide variety of eras. Includes mounting hardware.



  • VM dual magnet cartridge with 3.0 mil conical stylus
  • Aluminum cantilever

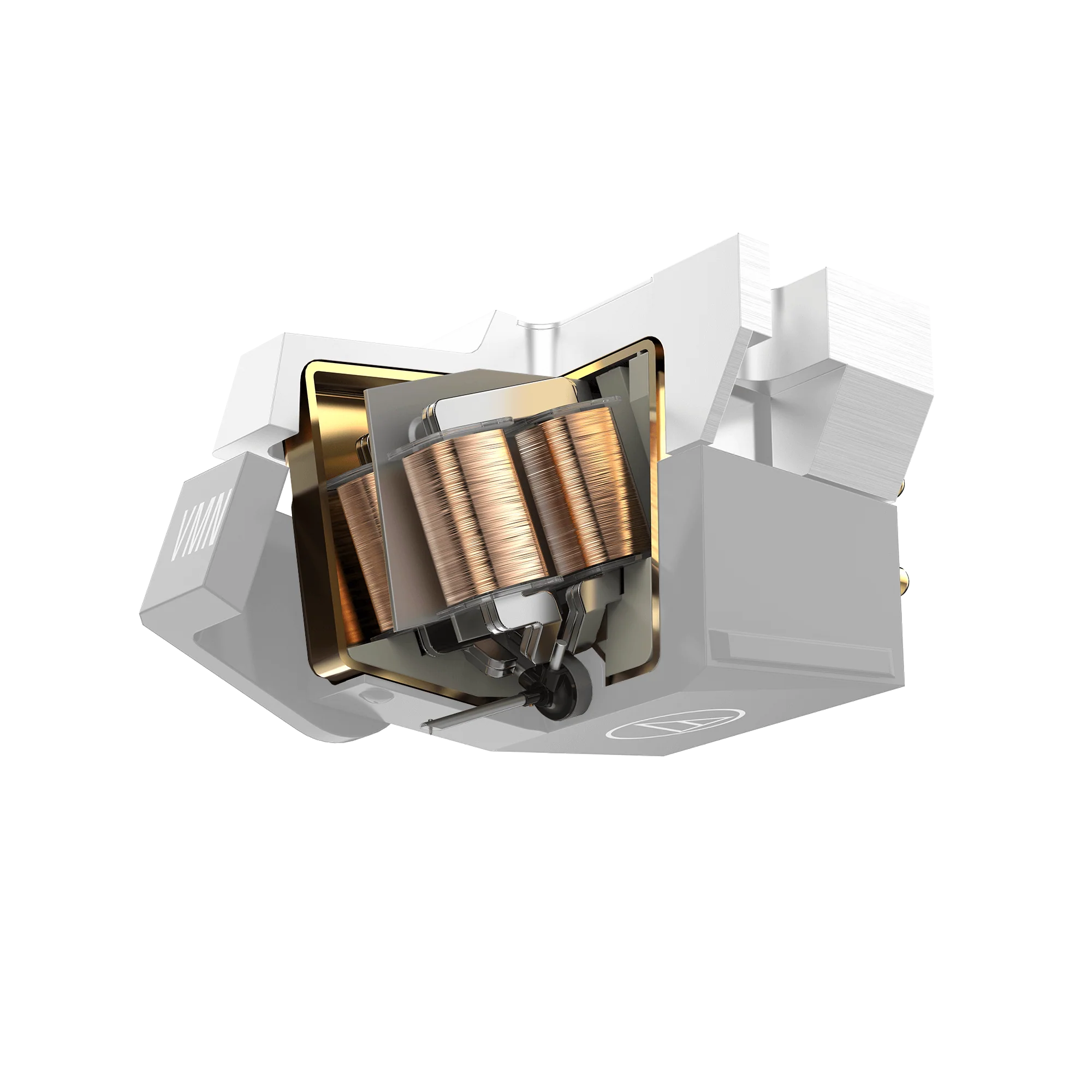

  • Paratoroidal coils improve generating efficiency
  • Mono body terminating left and right channels reduces surface noise
  • Durable low-resonance polymer housing
    Cartridge & Stylus
    Frequency Response 20-20,000 Hz
    Vertical Tracking Angle 23°
    Vertical Tracking Force 4.5-5.5 g (5.0 g standard)
    Stylus Construction Bonded round shank
    Recommended Load Impedance 47,000 ohms
    Coil Impedance 1,400 ohms (1 kHz)
    DC Resistance 400 ohms
    Coil Inductance 230 mH (1 kHz)
    Output Voltage 3.0 mV (at 1 kHz, 5 cm/sec)
    Stylus Shape 3.0 mil conical
    Cantilever Aluminum pipe
    Static Compliance 15 x 10-6 cm/dyne
    Dynamic Compliance 2 x 10-6 cm/dyne (100 Hz)
    Mounting Half-inch
    Dimensions 17.3 mm (0.7") H x 17.0 mm (0.7") W x 28.2 mm (1.1") D

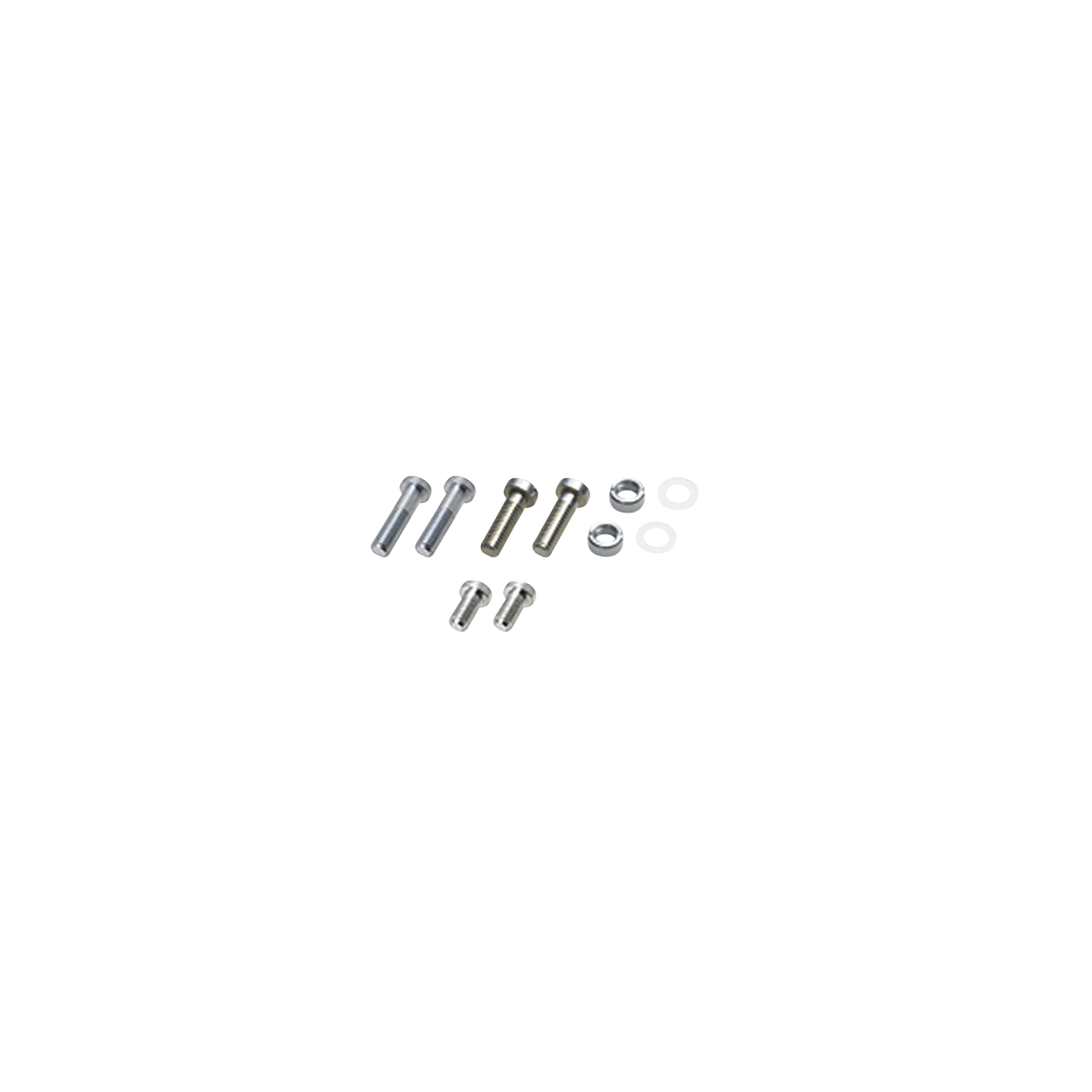

    Accessories Included Four cartridge installation screws (5 mm x 2, 10 mm x 2), two washers, two hexagon nuts
    Mounting Feature Half-inch mount
    Recommended Load Capacitance 100-200 pF
    Replacement Stylus VMN70SP
    Stylus Size 3.0 mil
    Type VM Type
    Weight 6.4 g (0.2 oz)
