Audio-Technica Headshell/Cartridge Combo Kit (AT-VM95SH/H)

AT-VM95SH/H

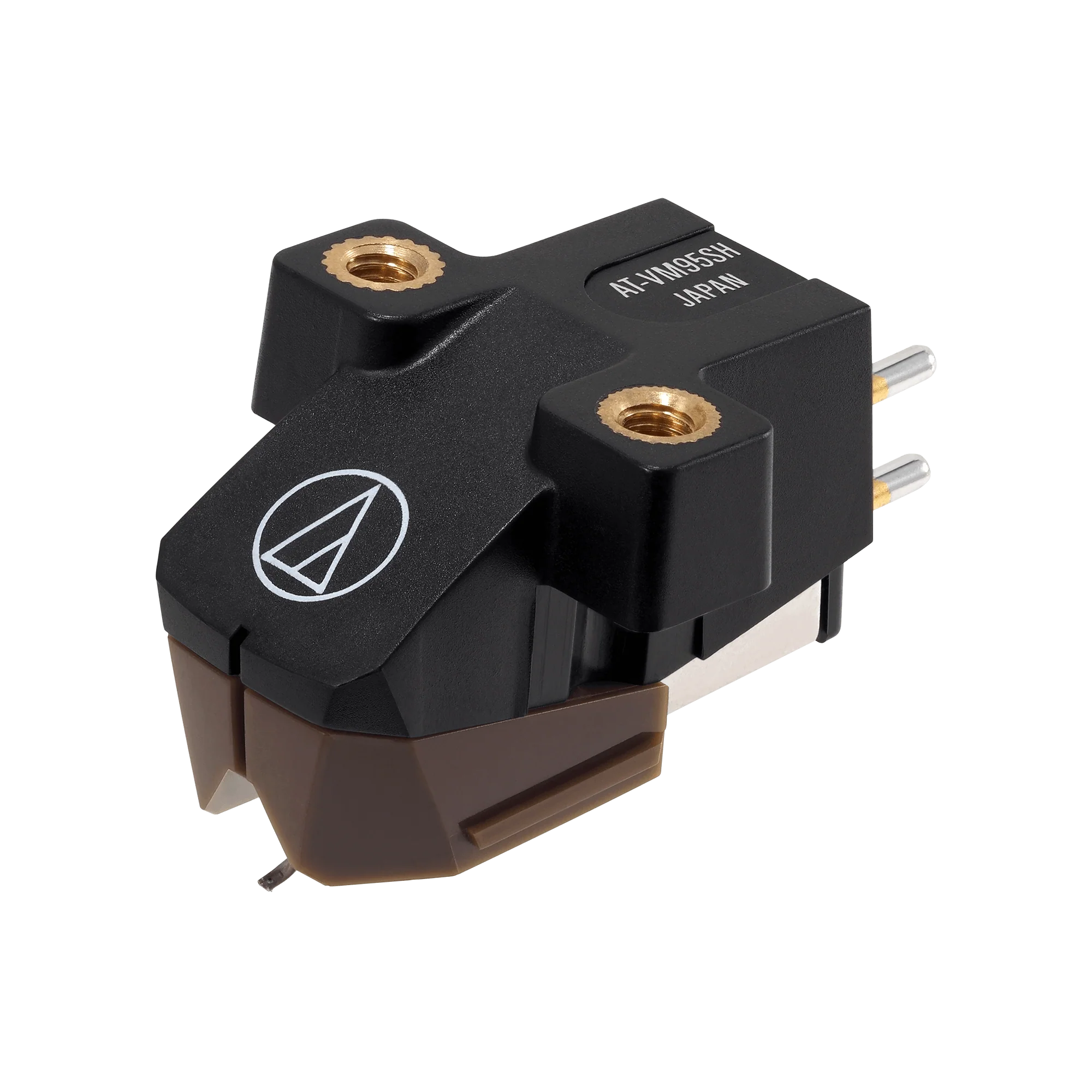

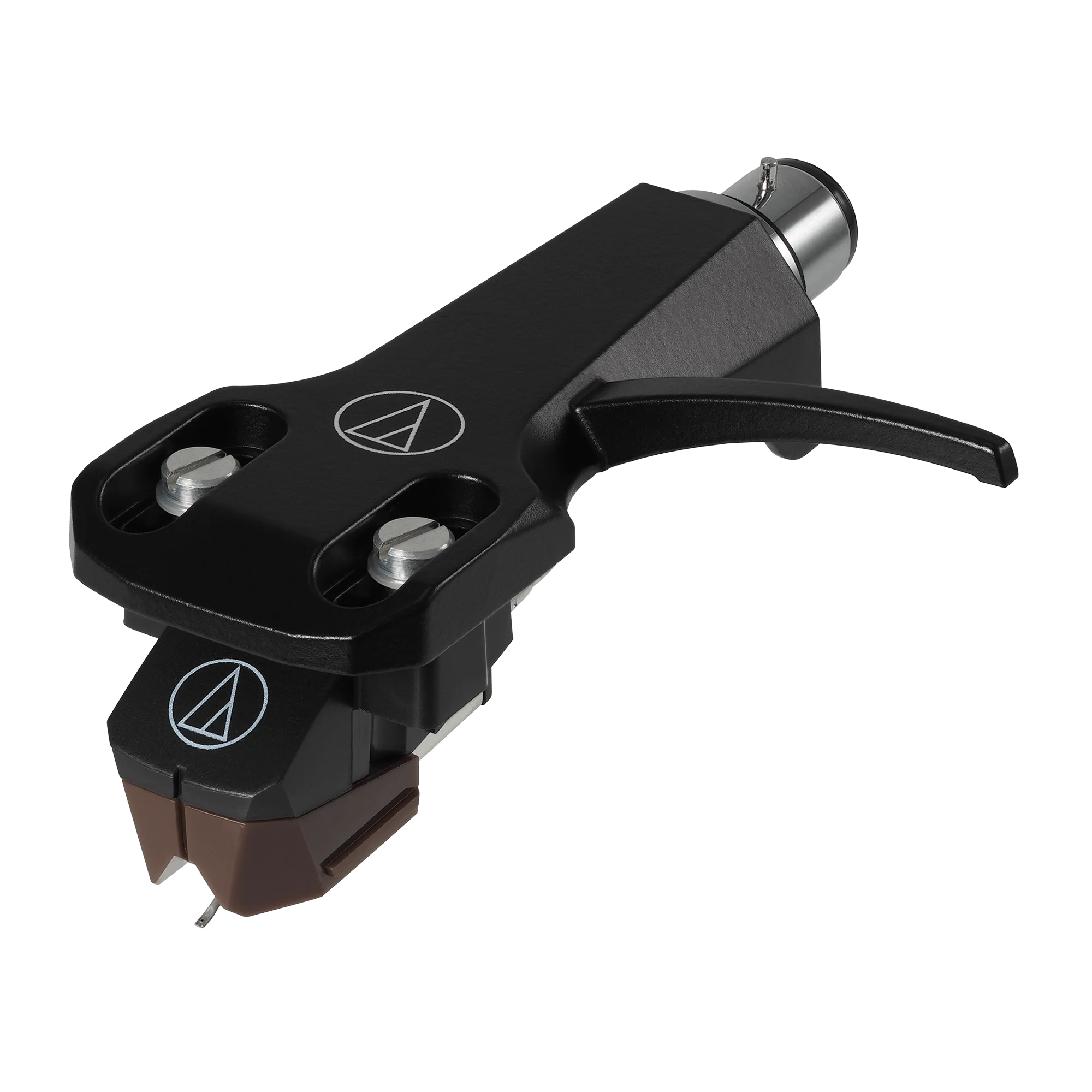

The AT-VM95SH/H combo kit includes the AT-VM95SH dual moving magnet cartridge premounted on the AT-HS6BK headshell.

    • VM dual magnet cartridge with 2.7 x 0.26 mil Shibata stylus
    • Aluminum cantilever
    • Specially wound coils increase output voltage
    • Durable low-resonance polymer housing
    • Threaded inserts in cartridge body enable cartridge to be mounted to headshell with just two screws – no nuts or washers required
    • Compatible with any AT-VMN95 replacement stylus

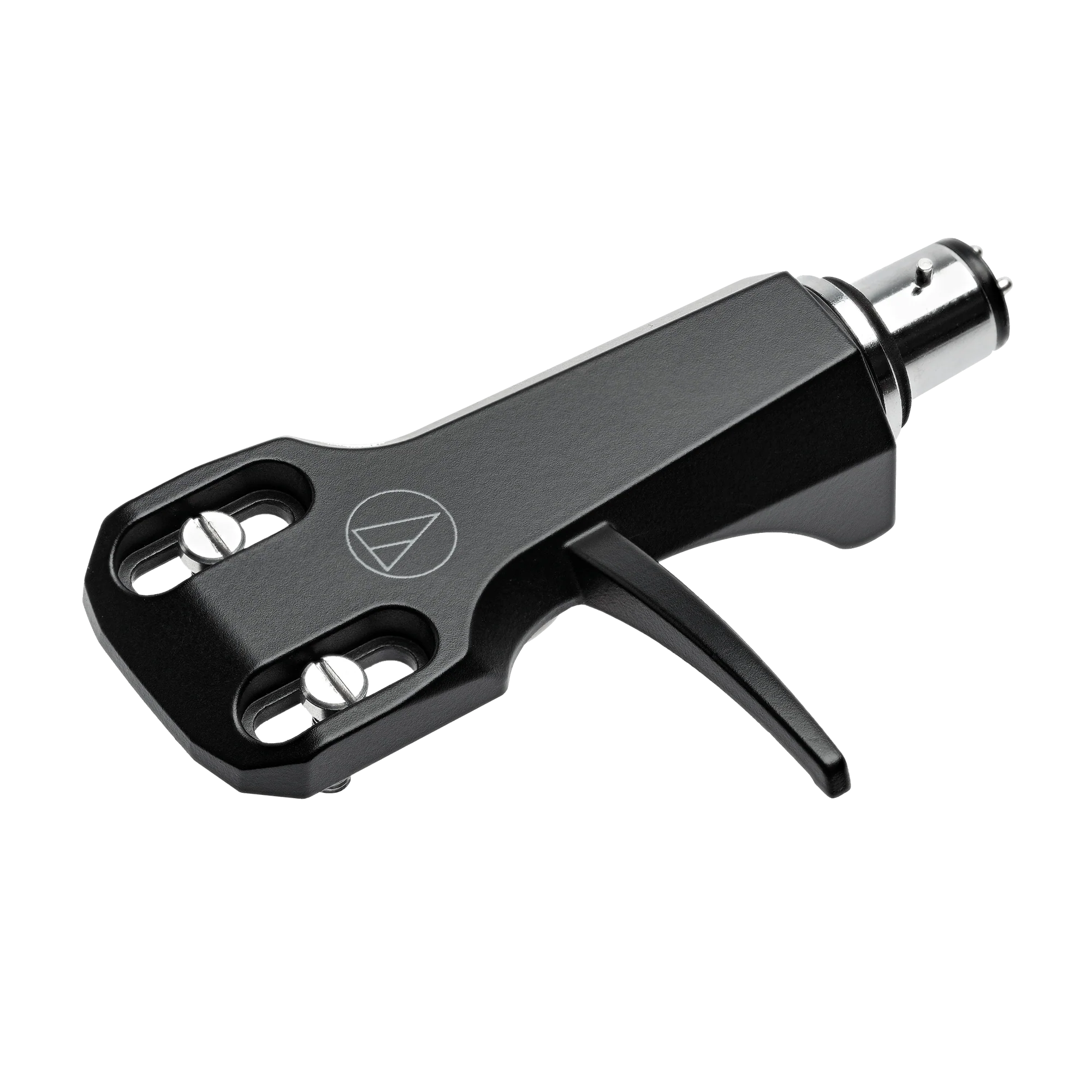

    • Universal ½"-mount headshell for 4-pin turntable cartridges
    Cartridge & Stylus
    Frequency Response 20-25,000 Hz
    Channel Separation 23 (dB at 1 kHz)
    Vertical Tracking Angle 23°
    Vertical Tracking Force 1.8-2.2 g (2.0 g standard)
    Stylus Construction Nude square shank
    Recommended Load Impedance 47,000 ohms
    Coil Impedance 3.3 k ohms (1 kHz)
    DC Resistance 485 ohms
    Coil Inductance 550 mH (1 kHz)
    Output Voltage 3.5 mV (1 kHz, 5 cm/sec.)
    Output Channel Balance 1.5 dB (1 kHz)
    Stylus Shape 2.7 x 0.26 mil Shibata
    Cantilever Aluminum pipe
    Static Compliance 20 x 10 – 6 cm / dyne
    Dynamic Compliance 10 x 10 – 6 cm / dyne (100 Hz)
    Mounting Half-inch
    Dimensions Cartridge 17.2 mm (0.68") H × 18.9 mm (0.74") W × 28.3 mm (1.20") D; Cartridge & Headshell 21.2 mm (0.83") H × 21.4 mm (0.84") W × 62.4 mm (2.46") D
    Accessories Included Two 11 mm installation screws, two 8 mm installation screws, two washers, nonmagnetic screwdriver
    Mounting Feature Half-inch mount
    Recommended Load Capacitance 100 to 200 pF
    Replacement Stylus AT-VMN95SH
    Stylus Size 2.7 x 0.26mil
    Type VM Stereo Dual Magnet
    Weight Cartridge 6.1 g (0.22 oz); Cartridge & Headshell 15.5 g (0.55 oz)
    Wire Used for Coil

    T.P. Copper
