Audio-Technica Headshell/Cartridge Combo Kit (AT-XP7/H)

Product image 1
1 / 5

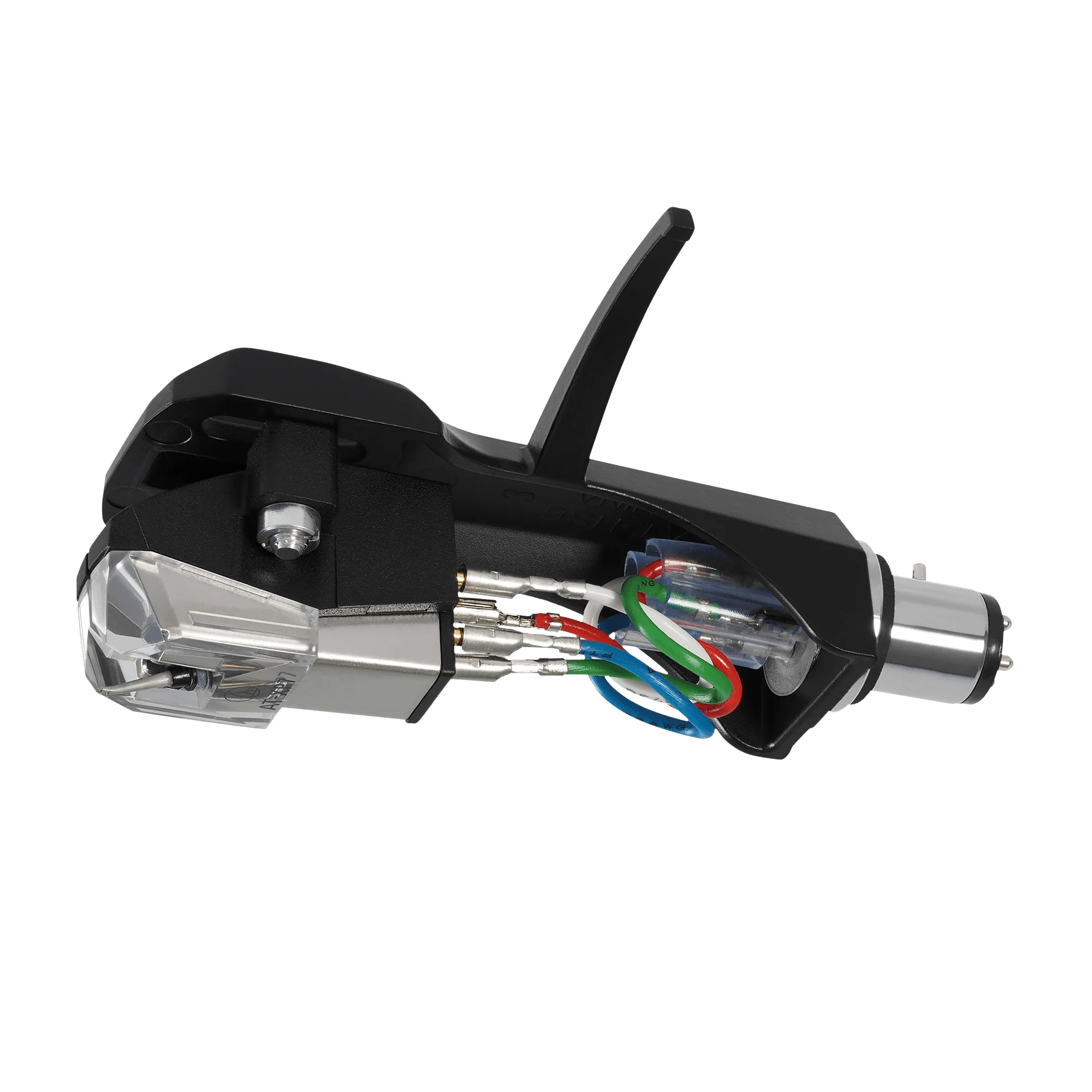

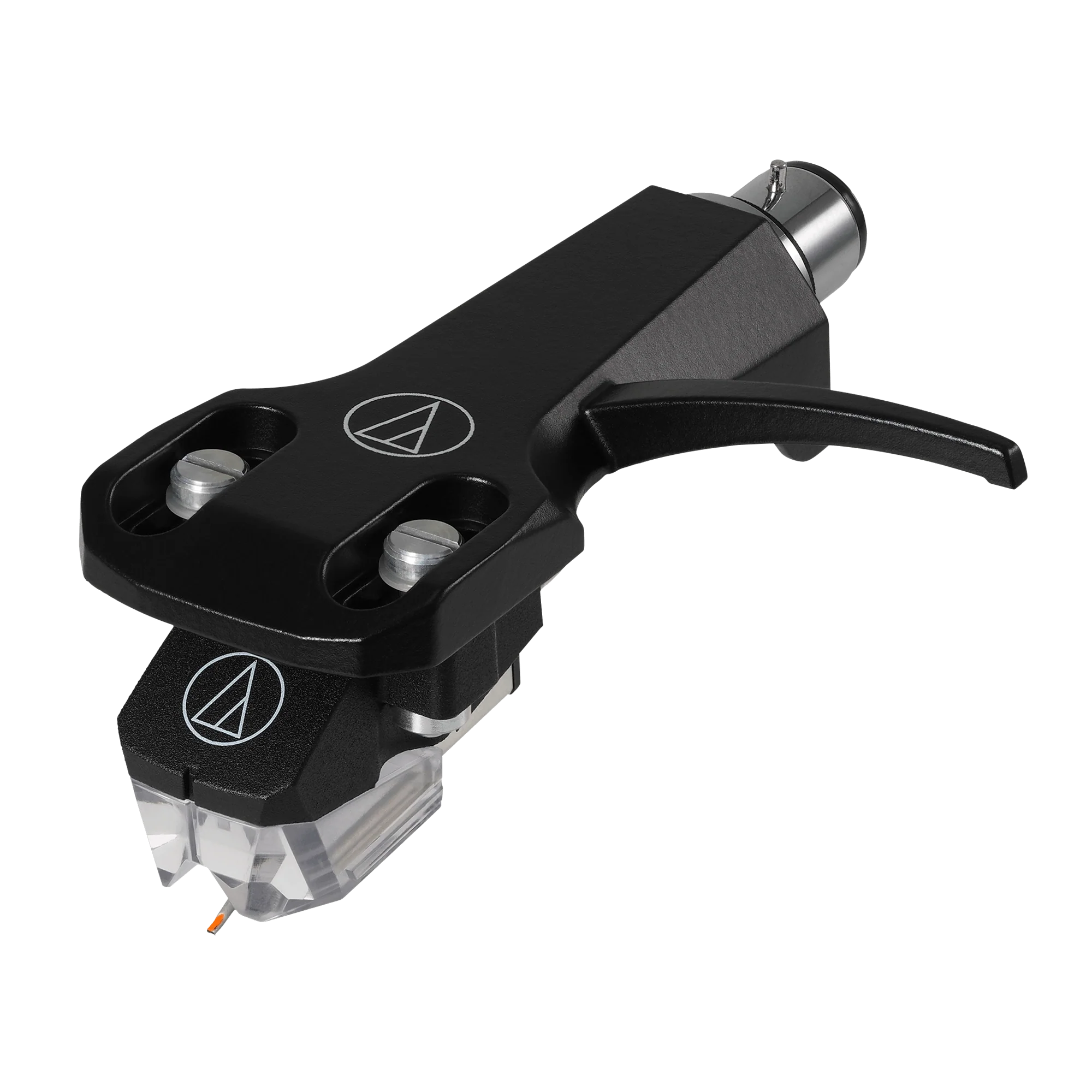

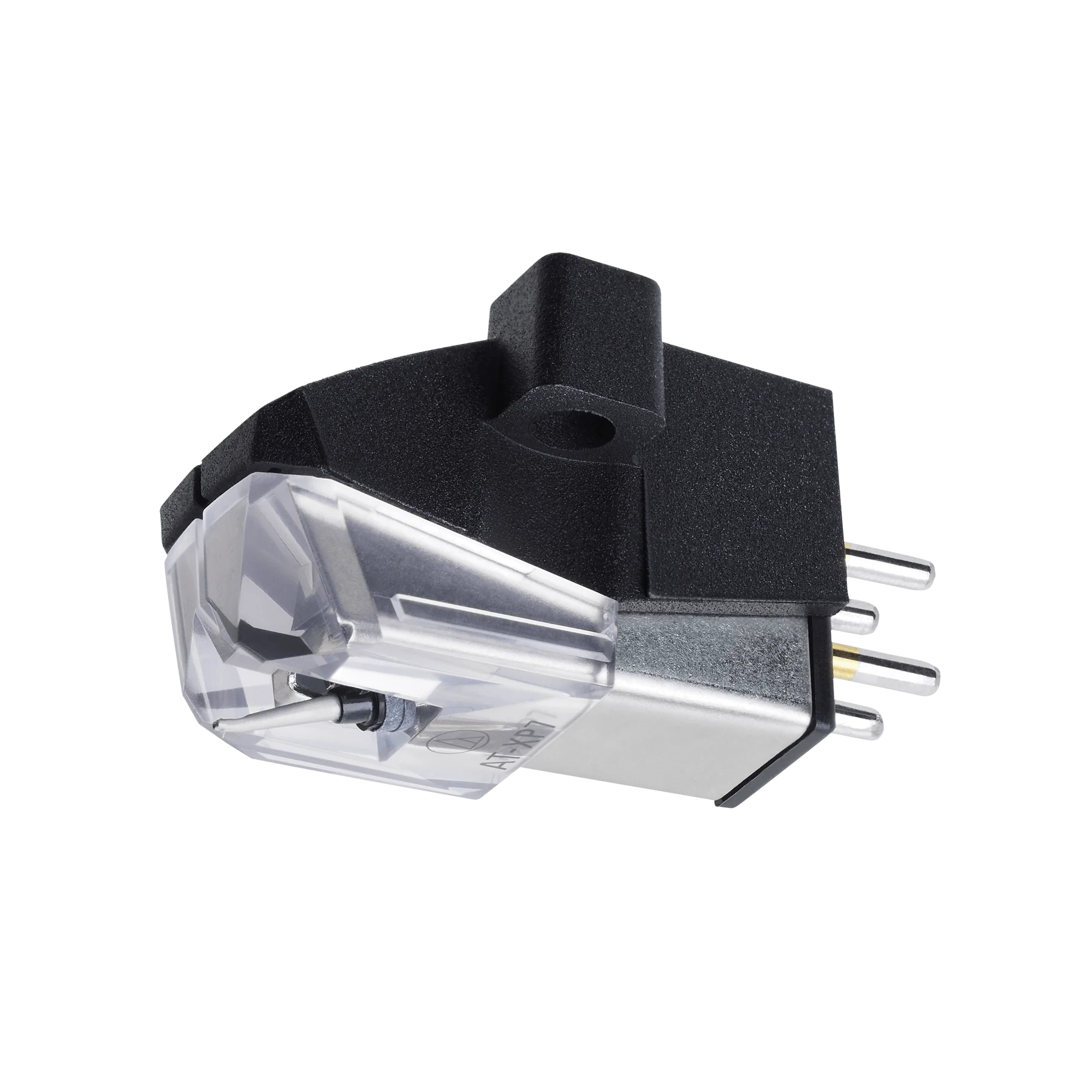

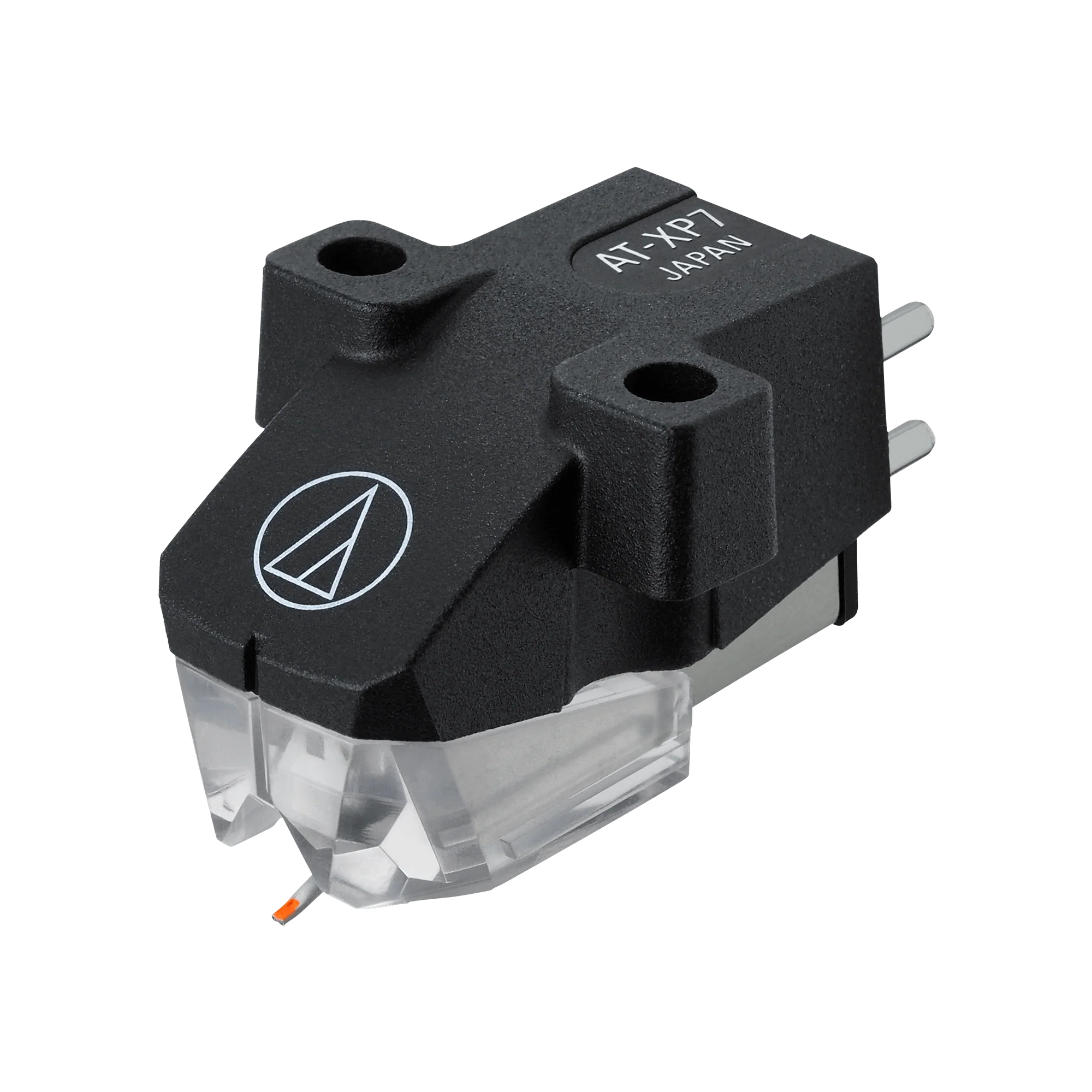

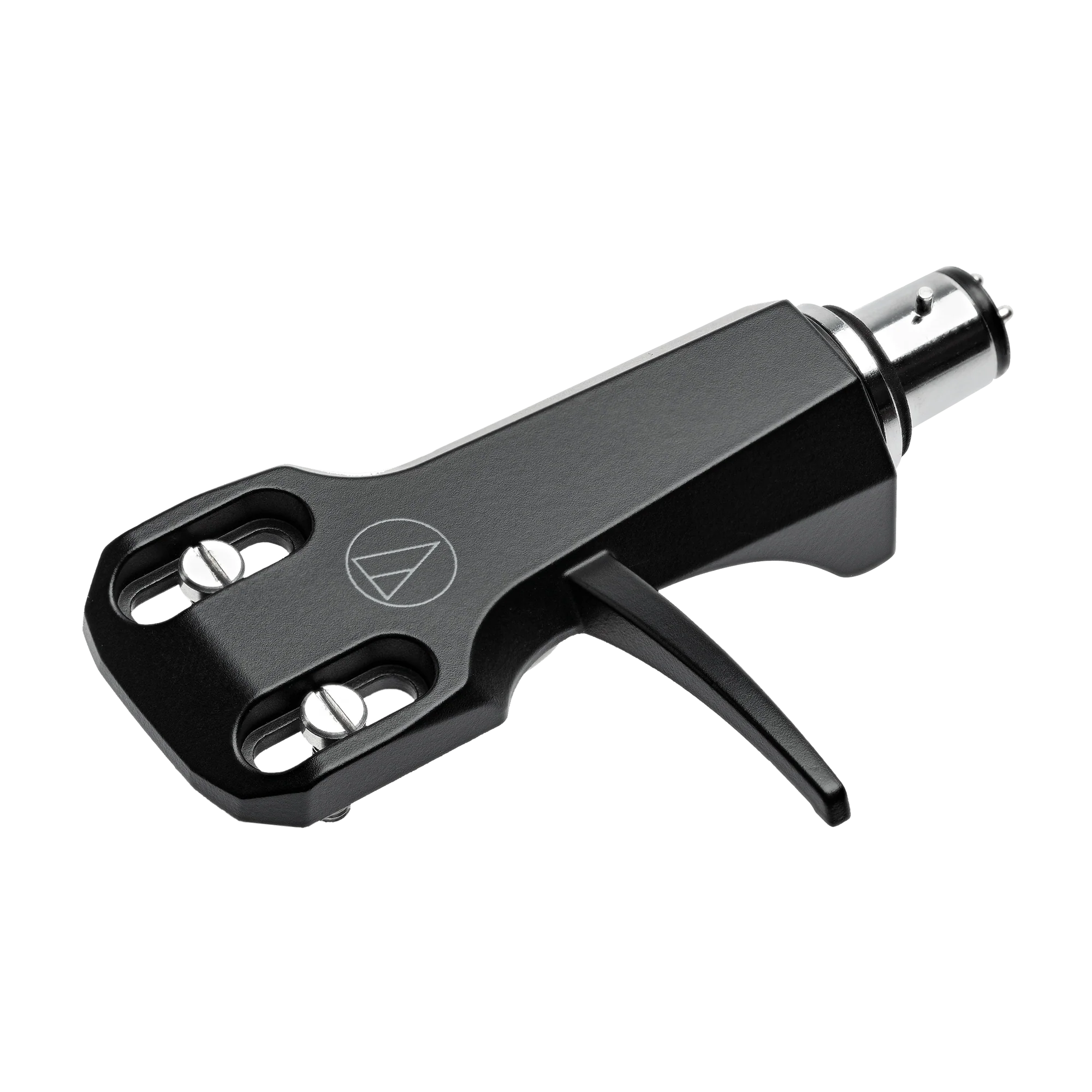

Audio-Technica Headshell/Cartridge Combo Kit (AT-XP7/H)

AT-XP7/H

The AT-XP7/H combo kit includes the AT-XP7 DJ cartridge premounted on the AT-HS6BK headshell.
  • 0.3 x 0.7 mil elliptical bonded stylus tip
  • Highly rigid, lightweight polyphenylene sulfide (PPS)/glass fiber body
  • 6.0 mV high-output level
  • Tracking force of 2.0 to 4.0 grams (3.0 grams standard)
  • Stainless wire suspension, double-layered rubber damper and tapered aluminum cantilever ensure precise tracking
  • Design offers maximum visibility of the stylus tip
  • Great tracking and channel separation for high-fidelity sound
  • Universal ½"-mount headshell for 4-pin turntable cartridges
Cartridge & Stylus
Frequency Response 20-20,000 Hz
Channel Separation 22 (dB at 1 kHz)
Vertical Tracking Angle 20°
Vertical Tracking Force 2.0-4.0 g (3.0 g standard)
Stylus Construction Bonded round shank
Recommended Load Impedance 47,000 ohms
Coil Impedance 6.7 k ohms (1 kHz)
DC Resistance 990 ohms
Coil Inductance 1.0 H (1 kHz)
Output Voltage 6.0 mV (1 kHz, 5 cm/sec.)
Output Channel Balance 2.0 dB (1 kHz)
Stylus Shape 0.3 x 0.7 mil elliptical
Cantilever Aluminum tapered pipe
Static Compliance 20 x 10 – 6 cm / dyne
Dynamic Compliance 8.0 x 10 – 6 cm / dyne (100 Hz)
Mounting Half-inch
Cartridge Weight 15.6g
Dimensions cartridge 17.2 mm (0.68") H × 17.8 mm (0.67") W × 28.3 mm (1.20") D; cartridge and headshell 21.2 mm (0.83") H × 21.4 mm (0.84") W × 62.4 mm (2.46") D
Accessories Included Two 11 mm installation screws, two 8 mm installation screws, two washers, two nuts, non-magnetic screwdriver
Model AT-XP7/H
Mounting Feature Half-inch mount
Recommended Load Capacitance 100 to 200 pF
Replacement Stylus ATN-XP7
Stylus Size 0.3 x 0.7 mil
Weight cartridge 6.2 g (0.22 oz); cartridge and headshell 15.6 g (0.55 oz)



How Long Will Shipping Take?

For shipping and handling times, please see below:



Item is Released Items will ship within 1 day if in stock and as soon as available if inbound.
Item is a Pre-Order Sale Items will ship once available after the release date.
Item is on Backorder Orders will ship once checked in but may take 15-45 days to restock.

AT-XP7/H

The AT-XP7/H combo kit includes the AT-XP7 DJ cartridge premounted on the AT-HS6BK headshell.
  • 0.3 x 0.7 mil elliptical bonded stylus tip
  • Highly rigid, lightweight polyphenylene sulfide (PPS)/glass fiber body
  • 6.0 mV high-output level
  • Tracking force of 2.0 to 4.0 grams (3.0 grams standard)
  • Stainless wire suspension, double-layered rubber damper and tapered aluminum cantilever ensure precise tracking
  • Design offers maximum visibility of the stylus tip
  • Great tracking and channel separation for high-fidelity sound
  • Universal ½"-mount headshell for 4-pin turntable cartridges
Cartridge & Stylus
Frequency Response 20-20,000 Hz
Channel Separation 22 (dB at 1 kHz)
Vertical Tracking Angle 20°
Vertical Tracking Force 2.0-4.0 g (3.0 g standard)
Stylus Construction Bonded round shank
Recommended Load Impedance 47,000 ohms
Coil Impedance 6.7 k ohms (1 kHz)
DC Resistance 990 ohms
Coil Inductance 1.0 H (1 kHz)
Output Voltage 6.0 mV (1 kHz, 5 cm/sec.)
Output Channel Balance 2.0 dB (1 kHz)
Stylus Shape 0.3 x 0.7 mil elliptical
Cantilever Aluminum tapered pipe
Static Compliance 20 x 10 – 6 cm / dyne
Dynamic Compliance 8.0 x 10 – 6 cm / dyne (100 Hz)
Mounting Half-inch
Cartridge Weight 15.6g
Dimensions cartridge 17.2 mm (0.68") H × 17.8 mm (0.67") W × 28.3 mm (1.20") D; cartridge and headshell 21.2 mm (0.83") H × 21.4 mm (0.84") W × 62.4 mm (2.46") D
Accessories Included Two 11 mm installation screws, two 8 mm installation screws, two washers, two nuts, non-magnetic screwdriver
Model AT-XP7/H
Mounting Feature Half-inch mount
Recommended Load Capacitance 100 to 200 pF
Replacement Stylus ATN-XP7
Stylus Size 0.3 x 0.7 mil
Weight cartridge 6.2 g (0.22 oz); cartridge and headshell 15.6 g (0.55 oz)



How Long Will Shipping Take?

For shipping and handling times, please see below:



Item is Released Items will ship within 1 day if in stock and as soon as available if inbound.
Item is a Pre-Order Sale Items will ship once available after the release date.
Item is on Backorder Orders will ship once checked in but may take 15-45 days to restock.
$759.00
Audio-Technica Headshell/Cartridge Combo Kit (AT-XP7/H)—
$759.00

Description

AT-XP7/H

The AT-XP7/H combo kit includes the AT-XP7 DJ cartridge premounted on the AT-HS6BK headshell.
  • 0.3 x 0.7 mil elliptical bonded stylus tip
  • Highly rigid, lightweight polyphenylene sulfide (PPS)/glass fiber body
  • 6.0 mV high-output level
  • Tracking force of 2.0 to 4.0 grams (3.0 grams standard)
  • Stainless wire suspension, double-layered rubber damper and tapered aluminum cantilever ensure precise tracking
  • Design offers maximum visibility of the stylus tip
  • Great tracking and channel separation for high-fidelity sound
  • Universal ½"-mount headshell for 4-pin turntable cartridges
Cartridge & Stylus
Frequency Response 20-20,000 Hz
Channel Separation 22 (dB at 1 kHz)
Vertical Tracking Angle 20°
Vertical Tracking Force 2.0-4.0 g (3.0 g standard)
Stylus Construction Bonded round shank
Recommended Load Impedance 47,000 ohms
Coil Impedance 6.7 k ohms (1 kHz)
DC Resistance 990 ohms
Coil Inductance 1.0 H (1 kHz)
Output Voltage 6.0 mV (1 kHz, 5 cm/sec.)
Output Channel Balance 2.0 dB (1 kHz)
Stylus Shape 0.3 x 0.7 mil elliptical
Cantilever Aluminum tapered pipe
Static Compliance 20 x 10 – 6 cm / dyne
Dynamic Compliance 8.0 x 10 – 6 cm / dyne (100 Hz)
Mounting Half-inch
Cartridge Weight 15.6g
Dimensions cartridge 17.2 mm (0.68") H × 17.8 mm (0.67") W × 28.3 mm (1.20") D; cartridge and headshell 21.2 mm (0.83") H × 21.4 mm (0.84") W × 62.4 mm (2.46") D
Accessories Included Two 11 mm installation screws, two 8 mm installation screws, two washers, two nuts, non-magnetic screwdriver
Model AT-XP7/H
Mounting Feature Half-inch mount
Recommended Load Capacitance 100 to 200 pF
Replacement Stylus ATN-XP7
Stylus Size 0.3 x 0.7 mil
Weight cartridge 6.2 g (0.22 oz); cartridge and headshell 15.6 g (0.55 oz)



How Long Will Shipping Take?

For shipping and handling times, please see below:



Item is Released Items will ship within 1 day if in stock and as soon as available if inbound.
Item is a Pre-Order Sale Items will ship once available after the release date.
Item is on Backorder Orders will ship once checked in but may take 15-45 days to restock.
