With rugged construction and stylish, waveform-inspired design, the BP40 delivers clear and articulate reproduction, ideal for any broadcast application. Optimized capsule placement helps maintain a commanding vocal presence even at a distance, while the multistage windscreen provides superior internal pop filtering. The BP40 broadcast microphone also includes a switchable 100 Hz high-pass filter to provide even more pop protection.

• Rich, natural, condenser-like sound

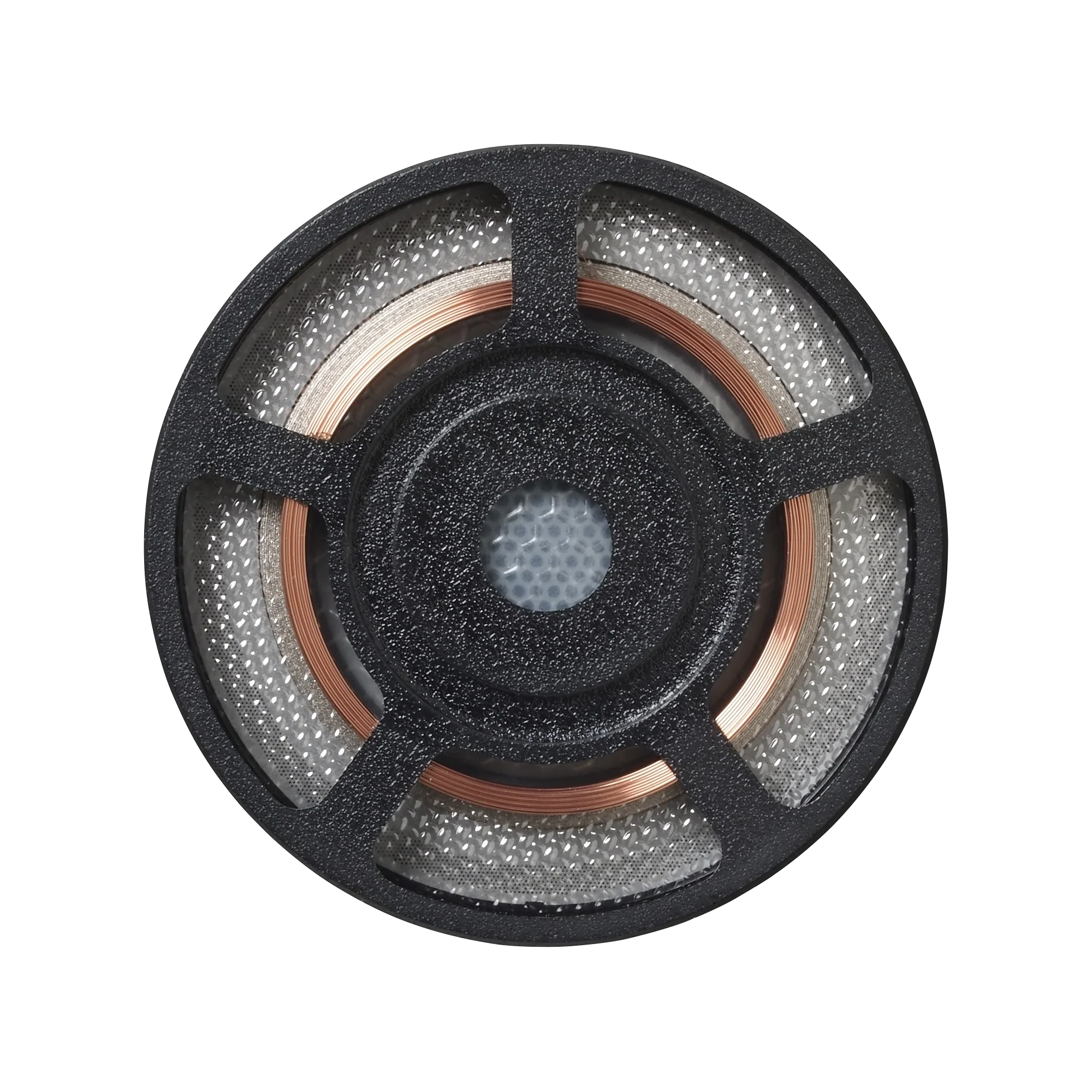

• Large diameter diaphragm with patented floating-edge construction for optimal diaphragm performance


• Humbucking coil prevents electromagnetic interference (EMI)


• Hypercardioid polar pattern improves isolation


• Switchable 100 Hz high-pass filter


• Superior off-axis rejection for maximum gain before feedback


• Optimized capsule placement for commanding vocal presence even at a distance


• Multistage windscreen provides superior internal pop filtering


• Rugged, all-metal construction for dependable use in professional broadcast environments





Microphones
Element	Dynamic
Polar Pattern	Hypercardioid
Frequency Response	50-16,000 Hz
Low Frequency Roll Off	100 Hz, 6 dB/octave
Open Circuit Sensitivity	–48 dB (3.9 mV) re 1V at 1 Pa
Switches	Flat, roll-off
Weight	632 g (22.3 oz)
Dimensions	164.0 mm (6.45") long, 56.0 mm (2.20") diameter
Output Connector	Integral 3-pin XLRM-type
Accessories Included	AT8483 mounting clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; soft protective pouch OPTIONAL ACCESSORY: AT8484 shock mount for 5/8"-27 threaded stands
Audio-Technica Case Style	R12
